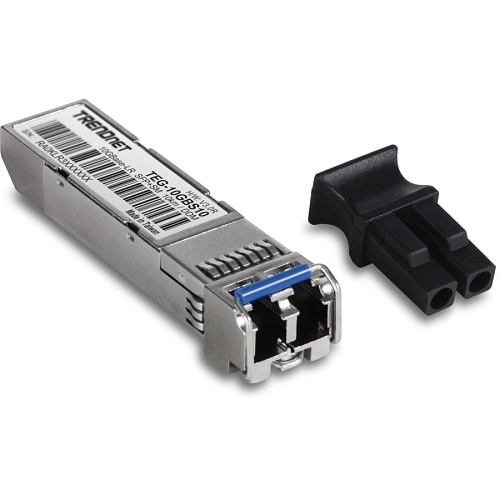

TRENDnet TEG-10GBS10 10GBASE-LR SFP+ Single Mode LC Module 10km with DDM

TEG-10GBS10|TQ-TEG10GBS1

TRENDnet TEG-10GBS10 10GBASE-LR SFP+ Single Mode LC Module 10km with DDM

TEG-10GBS10|TQ-TEG10GBS1

Sign In for Dealer Pricing

Become an ADI Customer
Image of TQ-TEG10GBS1
TRENDnet

TRENDnet TEG-10GBS10 10GBASE-LR SFP+ Single Mode LC Module 10km with DDM

TEG-10GBS10 | TQ-TEG10GBS1

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

TRENDnet's hot-pluggable TEG-10GBS10, 10GBASE-LR SFP+ Single Mode LC Module, works with a MSA compliant SFP+ slot. This Single Mode transceiver spans distances up to 10 km (6.2 miles), comes with a LC duplex connector, and supports up to 10.5 Gbps networking throughput speeds. Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage. Hot-Pluggable SFP+ Hot-pluggable SFP+ transceiver works with a MSA compliant SFP+ slot Fiber Wavelength Compatible with Single Mode 1310 nm transmissions Fiber Distance Supports networking for distances up to 10 km (6.2 miles) Fiber Port LC-type duplex connector DDM Support Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage Power Supply Single 3.3 volt power supply Operating Temperature Rated for an operating temperature range of 0 to 70 °C (32 to 158 °F) Standards Compliant with SFF-8431, SFF-8432, SFF-8472, 10G FC Rev 4.0, FC-PI-4 Rev 7.0, and IEEE802.3ae 10GBASE-LR/LW

Main Features

  • Transmission distance of up to 10km (6.21 mi.)
  • Duplex LC optical interface
  • Supports data rates of up to 10.31Gbps
  • Supports 1310nm single mode network transmissions
  • Low Electromagnetic Interference (EMI) design
  • Compliant with IEEE 802.3ae 10 Gigabit Ethernet
  • Digital Diagnostics Monitoring (DDM) support
  • Small Form-Factor Pluggable (SFP+) and Multi-Source Agreement (MSA) compliant
  • Low power consumption
  • NDAA / TAA compliant (U.S. and Canada only)

General Information

Name: TRENDnet TEG-10GBS10 10GBASE-LR SFP+ Single Mode LC Module 10km with DDM
Category: TRENDnet, Data Comm & Networking, Media Converters & Transceivers, SFP Modules, ADI Pro Rewards
UPC Code: 710931140187
Country of Origin: Taiwan. Country of origin is subject to change.
