TRENDnet TEG-S708 8-Port 10G Switch RJ-45, Rack Mountable

TRENDnet TEG-S708 8-Port 10G Switch RJ-45, Rack Mountable

TRENDnet TEG-S708 8-Port 10G Switch RJ-45, Rack Mountable
TEG-S708 | TQ-TEGS708
Please sign in to view pricing and availability and to add to cart.
Product Overview
- DEVICE INTERFACE: 8 x 10GBASE-T Ports (100Mbps/1Gbps/2.5Gbps/5Gbps/10G); LED indicators
- 10 GIGABIT PORTS: This 8-port 10G switch offers eight 10G ports with 160Gbps switching capacity for high-speed network connections providing a cost-effective solution in adding 10G link capability.
- 2.5/5G SUPPORT: The network switch supports 2.5G/5GBASE-T RJ-45 multi-gigabit speeds capable of up to 2.5Gbps or 5Gbps over existing Cat5e or better cabling.
- DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex); Fast Ethernet: 100 Mbps (half duplex); 200 Mbps (full duplex);Gigabit: 2000 Mbps (full duplex); 2.5 Gigabit: 5Gbps (full duplex)
- RACK MOUNTABLE DESIGN: The sturdy metal 10G Ethernet Switch has a rack mountable design for greater installation flexibility.
- TRENDnet LIFETIME PROTECTION: The TEG-S708 8-Port 10G Switch is backed by TRENDnet's Lifetime Manufacturer Protection.
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet's 8-Port 10G Switch, model TEG-S708, is a multi-gig switch that provides advanced high-bandwidth performance, ease of use, and reliability. The TEG-S708 multi-gig switch offers eight dedicated 10G ports for high-speed network connections with a 160Gbps switching capacity and a sturdy, rack mountable metal housing. This 10G switch is a cost-effective switch solution for highspeed 10 Gigabit network connections.
10G Ports
Eight 10G ports for high-speed network connections provide a cost-effective solution in adding 10G link capability.
2.5G/5G Support
Supports 2.5G/5GBASE-T RJ-45 multi-gigabit speeds capable of up to 2.5Gbps or 5Gbps over existing Cat5e or better cabling.
Rackmount Design
With a sturdy metal housing and included rackmount brackets, this switch is well-suited for 19" 1U rack installations.
Main Features
- 8 x 10G RJ-45 ports

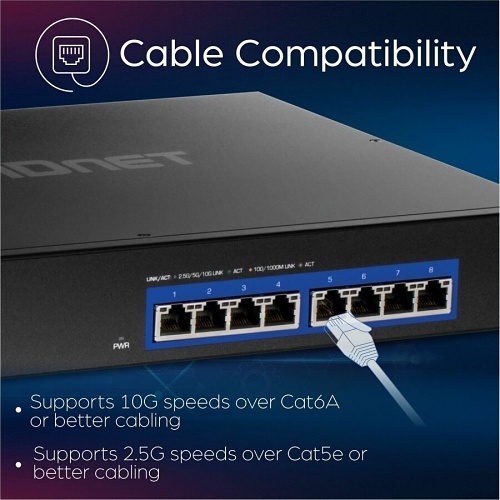

- Compatible with existing Cat6A or better cabling for 10Gbps
- Backward compatible Ethernet speeds of 1000Mbps and 2.5Gbps with Cat5e or better cabling
- Smart fan
- 160Gbps switching capacity
- IEEE 802.3bz (2.5G) and IEEE 802.3an (10G) compliant
- Rack mountable
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty
General Information
Specifications
ADI Part Number TQ-TEGS708 Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TEG-S708 Product Model TEG-S708 Product Name 8-Port 10G Switch Product Type Ethernet Switch Weight 14.60oz
Media Type Supported Twisted Pair Power Consumption 9.50W
Network (RJ-45) Yes Total Number of Network Ports 8
Network Technology 10GBase-T, 2.5GBase-T, 5GBase-T
Ethernet Technology 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compatible Rack Unit 1U Form Factor Rack Mount Height 4.3" Material Metal Width 1"
Frequency 50 Hz, 60 Hz Power Source Power Supply
Length 6.3" Mount Type Desktop Mount
Limited Warranty Lifetime
Country of Origin TW Package Contents - 8-Port 10G Switch
- Quick Installation Guide
- Power Cord (1.5m / 4.9 ft.)
- Rack Mount Kit
