TRENDnet TI-E50 5-Port Industrial Unmanaged Fast Ethernet DIN-Rail Switch, 1Gbps
TRENDnet TI-E50 5-Port Industrial Unmanaged Fast Ethernet DIN-Rail Switch, 1Gbps
TRENDnet TI-E50 5-Port Industrial Unmanaged Fast Ethernet DIN-Rail Switch, 1Gbps
TI-E50 | TQ-TIE50
Please sign in to view pricing and availability and to add to cart.
Product Overview
TRENDnet's Industrial Fast Ethernet DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial Ethernet switches are designed to withstand high levels of vibration and shock, operate in both low and high temperatures for industrial environments within a (-40° - 167° F) wide-temperature range. Redundant power inputs with overload current protection on each industrial Ethernet switch minimizes network downtime. Easy Installation No configuration needed, simply connect network devices to the industrial Ethernet switch. Redundant Power The industrial Ethernet switches feature dual power inputs to provide redundant power with overload current protection. Industrial Hardened Design Equipped with a rugged IP30 rated housing, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of (-40° - 167° F). Package Includes TI-E50 Quick Installation Guide Removable terminal block DIN-Rail and wall mount kit
Main Features
- Ethernet port interface: 5 x fast Ethernet ports
- Switching capacity: The network switch allows for a 1Gbps switching capacity.

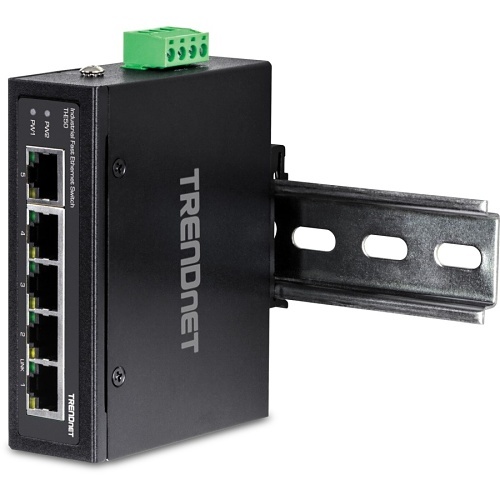

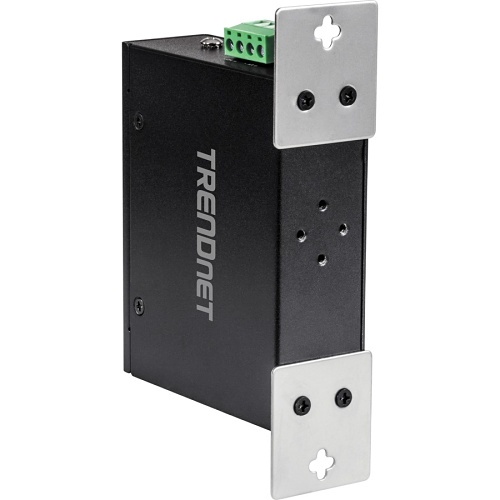

- Din-rail & Wall mount kit: This 5-port Fast Ethernet Switch comes with an integrated DIN-rail mount and mounting hardware.
- Extreme temperature Switch: the metal hardened IP30 rated network switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, while operating with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F) For harsh environments.

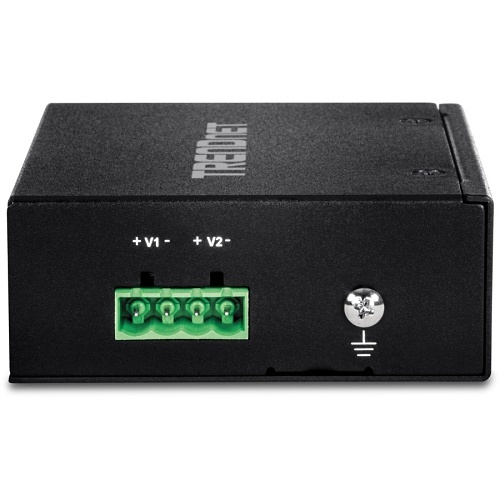

- Redundant power: the 5 port switch feature Dual power inputs to provide redundant power with overload current protection
- Power supply sold separately: The power supply for this 5 port DIN-rail Ethernet Switch is sold separately (model: TI-M6024)
- TRENDnet Lifetime protection: All metal TRENDnet switches are backed by our lifetime TRENDnet manufacturer protection .
- NDAA / TAA compliant (U.S. and Canada only)
General Information
Specifications
ADI Part Number TQ-TIE50 Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TI-E50 Product Line Industrial Product Model TI-E50 Product Name 5-Port Industrial Fast Ethernet DIN-Rail Switch Product Series TI Product Type Ethernet Switch Weight 1.49lb
Media Type Supported Twisted Pair Power Consumption 2.24W
Shared SFP Slot No
Modular No Total Number of Network Ports 5 Uplink Port No
Manageable No
Network Technology 100Base-X
Ethernet Technology Fast Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Depth 10" Form Factor DIN Rail Mount Height 3" Material Metal Width 5"
Input Voltage 12-56V DC PoE (RJ-45) Port No Power Source Power Supply
Limited Warranty Lifetime
Country of Origin TW Environmental Certification CE, FCC Environmentally Friendly Yes Package Contents DIN-rail and wall mount kit, Quick Installation Guide, Removable terminal block, TI-E50
