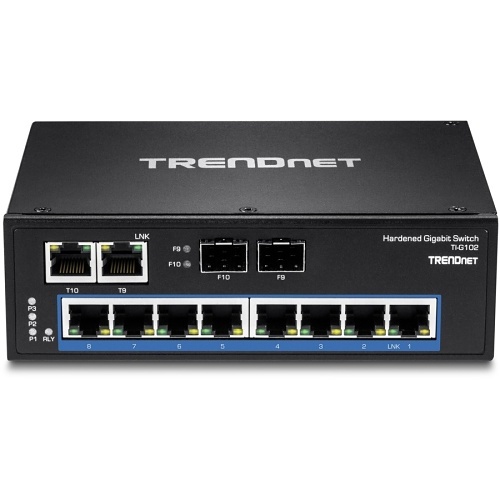

TRENDnet TI-G102 10-Port Hardened Industrial Gigabit DIN-Rail Switch
TRENDnet TI-G102 10-Port Hardened Industrial Gigabit DIN-Rail Switch
TRENDnet TI-G102 10-Port Hardened Industrial Gigabit DIN-Rail Switch
TI-G102 | TQ-TIG102
Please sign in to view pricing and availability and to add to cart.
Product Overview
TRENDnet's 10-Port Hardened Industrial Gigabit DIN-Rail Switch, model TI-G102, has eight dedicated gigabit ports, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments. Gigabit Speeds Ten gigabit ports provide high-speed network connections to devices, and a 20 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks. Fault Tolerance Features dual redundant power inputs with output alarm relay. Industrial Hardened Design Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments. Package Contents: - TI-G102 - Quick Installation Guide - Removable terminal block - DIN-rail / wall mount kit
Main Features
- 8 x Gigabit ports
- 2 x Gigabit RJ-45 / SFP shared ports
- 20Gbps switching capacity
- Hardened IP30 rated metal switch
- Power supply sold separately (models: TI-M6024 / 48VDC3000)
- Includes DIN-rail and wall mounts
- Operating temperature range of -40° - 75°C (-40° - 167°F)
- Dual redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Lifetime TRENDnet Manufacturer's Warranty
General Information
Specifications
ADI Part Number TQ-TIG102 Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TI-G102 Product Line Industrial Product Model TI-G102 Product Name 10-Port Hardened Industrial Gigabit DIN-Rail Switch Product Series TI Product Type Ethernet Switch Weight 1.49lb
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 5.76W
Expansion Slot Type SFP Number of SFP Slots 2 Number of SFP+ Slots 2 Number of Total Expansion Slots 2 Shared SFP Slot Yes
Modular Yes Total Number of Network Ports 10 Uplink Port No
Manageable No
Network Technology 1000Base-T, 1000Base-X
Ethernet Technology Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Depth 10" Form Factor Rail Mount, Wall Mount Height 3" Material Metal Width 5"
Input Voltage 12-56V DC PoE (RJ-45) Port Yes Power Source Power Supply
Length 6.1" Mount Type Desktop Mount
Limited Warranty Lifetime
Country of Origin TW Environmental Certification CE, FCC Environmentally Friendly Yes Package Contents DIN-rail and wall mount kit, Quick Installation Guide, Removable terminal block, TI-G102
