TRENDnet TI-G50 5-Port Hardened Industrial Gigabit DIN-Rail Switch, 10Gbps
TI-G50|TQ-TIG50
TRENDnet TI-G50 5-Port Hardened Industrial Gigabit DIN-Rail Switch, 10Gbps
TI-G50|TQ-TIG50
TRENDnet
TRENDnet TI-G50 5-Port Hardened Industrial Gigabit DIN-Rail Switch, 10Gbps
TI-G50 | TQ-TIG50
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

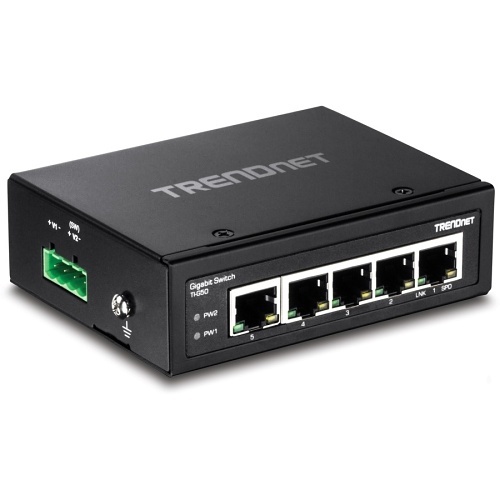

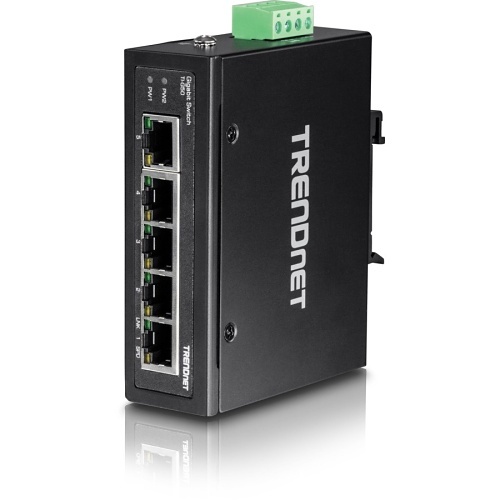

TRENDnet's TI-G50 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit ports and a 10 Gbps switching capacity. Dual redundant power inputs (power adapter sold separately: TI-M6024) with overload current protection support zero downtime applications.
Main Features
- ETHERNET PORT INTERFACE: 5 x Gigabit Ethernet ports
- SWITCHING CAPACITY: The hardened industrial gigabit switch and five gigabit ports provide a 10 Gbps switching capacity.
- DIN-RAIL & WALL MOUNT KIT: This 5-Port gigabit Ethernet IP30 rated network metal switch comes equipped with included DIN-rail and wall mount hardware.
- EXTREME TEMPERATURE SWITCH: The hardened IP30 rated gigabit switch is rated for extreme temperatures with an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)
- ELECTRO MAGNETIC COMPLIANT & SHOCK & VIBRATION RESISTANT: Industrial DIN-rail switch complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards and is rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6).
- REDUNDANT POWER: The 5 port switch has dual redundant power inputs with overload current protection (power supply sold separately: model TI-M6024)
- TRENDnet LIFETIME PROTECTION: All metal TRENDnet switches are backed by our lifetime TRENDnet Manufacturer Warranty.
- NDAA / TAA compliant (U.S. and Canada only)
General Information
Name: TRENDnet TI-G50 5-Port Hardened Industrial Gigabit DIN-Rail Switch, 10Gbps
Category: TRENDnet, Data Comm & Networking, Hubs, Routers & Switches, Network Switches, ADI Pro Rewards
UPC Code: 710931160321
Country of Origin: TW. Country of origin is subject to change.
Specifications
ADI Part Number TQ-TIG50 Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TI-G50 NDAA Compliant Yes Product Line Industrial Product Model TI-G50 Product Name 5-port hardened Industrial Gigabit Switch Product Series TI Product Type Ethernet Switch Weight 1.49lb
Material Metal Media Type Supported Twisted Pair Power Consumption 2.76W
Shared SFP Slot No
Modular No Total Number of Network Ports 5 Uplink Port No
Manageable No
Network Technology 1000Base-T
Ethernet Technology Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Depth 10" Form Factor Rail Mount, Wall Mount Height 3" Width 5"
Input Voltage 12-60V DC, 18-36V AC PoE (RJ-45) Port No Power Source Power Supply
Limited Warranty Lifetime
Environmental Certification CE, FCC Environmentally Friendly Yes Package Contents DIN-Rail / wall mount kit, Quick Installation Guide, Removable terminal block, TI-G50 TAA Compliant Yes
