TRENDnet TI-G62 6-Port Hardened Industrial Gigabit DIN-Rail Switch
TRENDnet TI-G62 6-Port Hardened Industrial Gigabit DIN-Rail Switch
TRENDnet TI-G62 6-Port Hardened Industrial Gigabit DIN-Rail Switch
TI-G62 | TQ-TIG62
Please sign in to view pricing and availability and to add to cart.
Product Overview

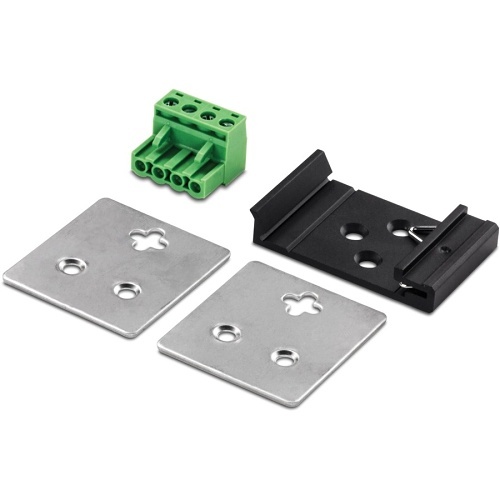

TRENDnet's TI-G62 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit Ethernet ports, one shared SFP slot, one dedicated SFP slot, and a 12 Gbps switching capacity. DIP switches toggle between the shared Gigabit port and SFP slot and set supported throughput to either 100 Mbps or 1 Gbps. Dual redundant power inputs (power supply sold separately: TI-M6024) and a power failure alarm output trigger support zero downtime applications. Package Contents:- TI-G62- Quick Installation Guide- Removable terminal block- DIN-rail / wall mount kit
Main Features
- 5 x Gigabit Ethernet ports
- 1 x shared SFP slot and 1 x dedicated SFP slot
- 12 Gbps switching capacity
- Power supply sold separately (model TI-M6024)
- Hardened IP30 rated metal switch
- Includes DIN-rail and wall mounts
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Dual redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Lifetime TRENDnet Manufacturer's Warranty
General Information
Specifications
ADI Part Number TQ-TIG62 Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TI-G62 Product Line Industrial Product Model TI-G62 Product Name 6-Port Hardened Industrial Gigabit DIN-Rail Switch Product Series TI Product Type Ethernet Switch Weight 1.49lb
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 3.84W
Expansion Slot Type SFP Number of SFP Slots 1 Number of SFP+ Slots 1 Number of Total Expansion Slots 1 Shared SFP Slot Yes
Modular No Total Number of Network Ports 6 Uplink Port No
Manageable No
Network Technology 1000Base-T, 1000Base-X
Ethernet Technology Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Depth 10" Form Factor Rail Mount, Wall Mount Height 3" Material Metal Width 5"
Input Voltage 12-56V DC PoE (RJ-45) Port No Power Source Power Supply
Limited Warranty Lifetime
Country of Origin TW Environmental Certification CE, FCC Environmentally Friendly Yes Package Contents DIN-Rail / wall mount kit, Quick Installation Guide, Removable terminal block, TI-G62
