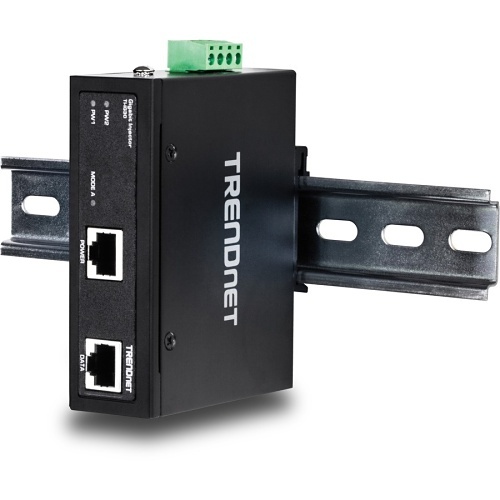

TRENDnet TI-IG30 Hardened Industrial Gigabit PoE+ Injector
TI-IG30 | TQ-TIIG30
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
TRENDnet's TI-IG30 is a reliable IP30 rated Industrial Gigabit PoE Injector with hardened components rated for extreme industrial environments. Connect the TI-IG30 to a non-PoE Gigabit switch and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE, PoE , or high power PoE device. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection support zero downtime applications. Both DIN-rail and wall mount hardware is included. PACKAGE CONTENTS TI-IG30 Quick Installation Guide Removable terminal block DIN-rail and wall mount kit
Main Features
- Hardened IP30 rated Gigabit PoE+ Injector
- High power PoE+
- Network a PoE device located up to 100 meters (328 ft.) away
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Dual redundant power inputs with overload current protection
- Includes DIN-rail and wall mounts
- Power supply sold separately (model TI-S15052, TI-S12048)
- NDAA / TAA compliant (U.S. and Canada only)
General Information
Name: TRENDnet TI-IG30 Hardened Industrial Gigabit PoE+ Injector
Category: TRENDnet, Data Comm & Networking, PoE Devices, PoE Injectors, ADI Pro Rewards
UPC Code: 710931160437
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number TQ-TIIG30 Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TI-IG30 Product Model TI-IG30 Product Name Hardened Industrial Gigabit PoE+ Injector Product Series TI Product Type PoE Injector Weight 4.73oz
Operating Relative Humidity (H-H) 0.95 Operating Temperature (T-T) -40-167°F
Input Ports 10/100/1000Base-T Output Ports 10/100/1000Base-T
Data Transfer Rate 10 Mbps, 100 Mbps, 20 Mbps, 200 Mbps, 2000 Mbps Network Technology 10/100/1000Base-T
Color Black Form Factor External Height 3" Width 5"
Input Voltage 56V DC Maximum Output Power 36W
Length 10" Mount Type DIN Rail Mount, Wall Mount Protection Type Overload Protection
Limited Warranty 3-Year

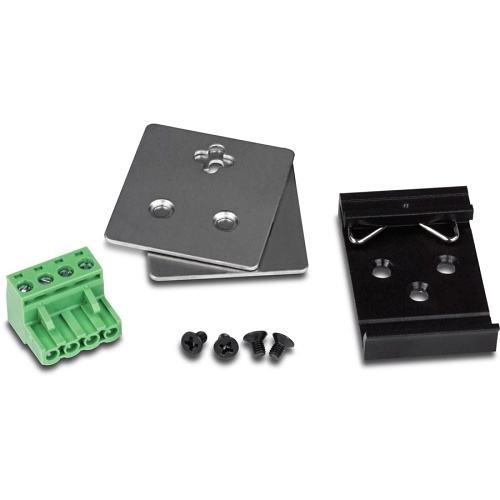

Certifications & Standards CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) Country of Origin TW Package Contents - Hardened Industrial Gigabit PoE+ Injector
- Quick Installation Guide
- Removable terminal block
- DIN-rail and wall mount kit
