TRENDnet TI-IG60 Hardened Industrial 60w Gigabit PoE+ Injector, DIN-Rail Mount, Ip30 Rated Housing, Includes DIN-Rail and Wall Mounts, Ti-Ig60
TRENDnet TI-IG60 Hardened Industrial 60w Gigabit PoE+ Injector, DIN-Rail Mount, Ip30 Rated Housing, Includes DIN-Rail and Wall Mounts, Ti-Ig60
TRENDnet TI-IG60 Hardened Industrial 60w Gigabit PoE+ Injector, DIN-Rail Mount, Ip30 Rated Housing, Includes DIN-Rail and Wall Mounts, Ti-Ig60
TI-IG60 | TQ-TIIG60
Please sign in to view pricing and availability and to add to cart.
Product Overview

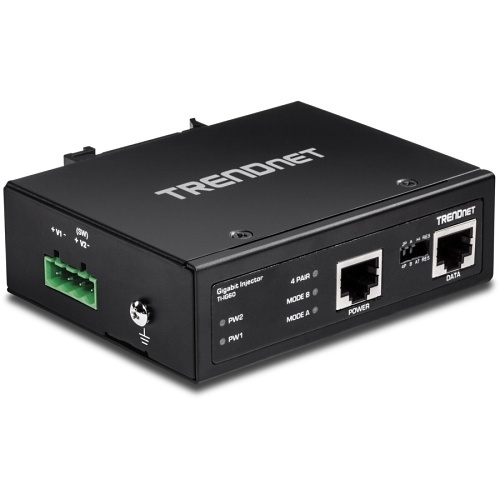

TRENDnet's TI-IG60 is a reliable IP30 rated Industrial Gigabit UPoE Injector with hardened components rated for extreme industrial environments. Connect the TI-IG60 to a non-PoE Gigabit switch and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG60 supplies power to a PoE (up to 15 W), PoE (up to 30 W), high power PoE (36 W), or 60 Watt PoE device. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection support zero downtime applications. Both DIN-rail and wall mount hardware is included. PACKAGE CONTENTS TI-IG60 Quick Installation Guide Removable terminal block DIN-rail and wall mount kit
Main Features
- Hardened IP30 rated Gigabit PoE Injector
- PoE (15 W), PoE+ (30 W), high power PoE+ (36 W), or UPoE (60 W) power
- Network a PoE device located up to 100 meters (328 ft.) away
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Dual redundant power inputs with overload current protection
- Includes DIN-rail and wall mounts
- Power supply sold separately (model TI-S15052, TI-S12048)
- NDAA / TAA compliant (U.S. and Canada only)
General Information
Specifications
ADI Part Number TQ-TIIG60 Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TI-IG60 Product Model TI-IG60 Product Name Hardened Industrial 60 Watt UPoE Injector Product Series TI Product Type PoE Injector Weight 4.87oz
Operating Relative Humidity (H-H) 0.95 Operating Temperature (T-T) -40-167°F
Input Ports 10/100/1000Base-T Output Ports 10/100/1000Base-T
Data Transfer Rate 10 Mbps, 100 Mbps, 20 Mbps, 200 Mbps, 2000 Mbps Network Technology 10/100/1000Base-T
Color Black Form Factor External Height 3" Width 5"
Input Voltage 48V DC, 56V DC Maximum Output Power 72W
Length 10" Mount Type DIN Rail Mount, Wall Mount Protection Type Overload Protection
Limited Warranty 3-Year

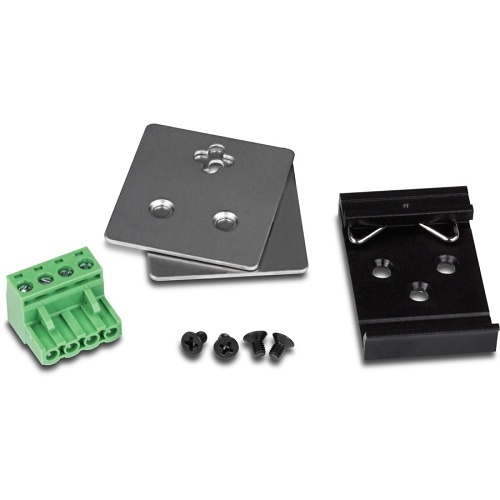

Certifications & Standards CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) Country of Origin TW Package Contents - Hardened Industrial 60 Watt Gigabit PoE+ Injector
- Quick Installation Guide
- Removable Terminal Block
- DIN-Rail And Wall Mount Kit
