TRENDnet TI-IG90 Hardened Industrial 90W Gigabit PoE Injector, 4-Pair PoE
TRENDnet TI-IG90 Hardened Industrial 90W Gigabit PoE Injector, 4-Pair PoE
TRENDnet TI-IG90 Hardened Industrial 90W Gigabit PoE Injector, 4-Pair PoE
TI-IG90 | TQ-TIIG90
Please sign in to view pricing and availability and to add to cart.
Product Overview

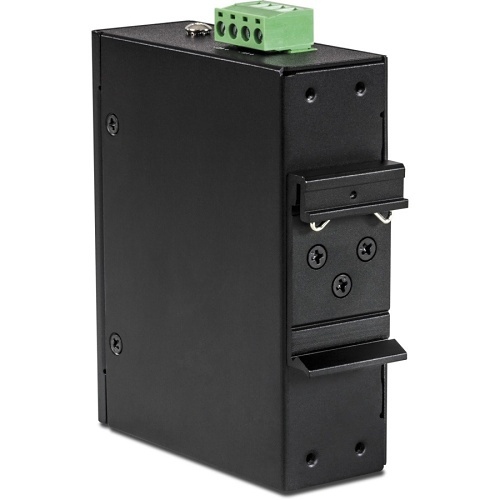

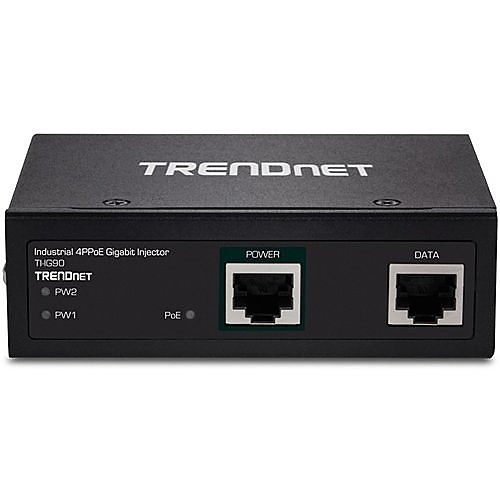

TRENDnet's TI-IG90 is a reliable IP30 rated Industrial Gigabit 4PPoE Injector with hardened components rated for extreme and rugged industrial environments. Connect the TI-IG90 industrial PoE injector to a non-PoE Gigabit switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG90 industrial PoE injector supplies power to a PoE, PoE , UPoE, or 4PPoE (up to 90W) device. This industrial PoE injector features redundant power inputs with overload current protection to support zero downtime applications. Both DIN-rail and wall mount hardware are included with the industrial PoE injector. 4-Pair PoE Supplies power to a PoE (up to 15.4W), PoE (up to 30W), or 4PPoE (up to 90W) device. Gigabit Ports The industrial PoE injector features 1 x gigabit port and 1 x gigabit 4PPoE port. Installation Flexibility A rugged IP30 rated metal enclosure with DIN-rail and wall mount brackets accommodate most installations scenarios. PACKAGE CONTENTS TI-IG90 Quick Installation Guide Removable terminal block DIN-rail and wall mount kit
Main Features
- Hardened IP30 rated Gigabit PoE++ Injector
- PoE (15.4W), PoE+ (30W), or PoE++ (90W) power
- Network a PoE device located up to 100m (328 ft.) away
- Extreme -40 to 75 °C (-40 to 167 °F) operating temperature range

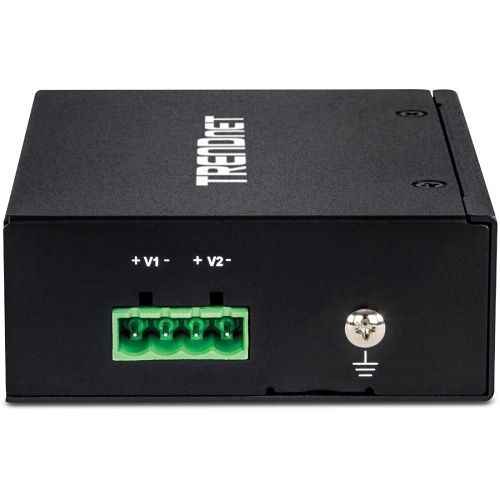

- Redundant power inputs with overload current protection
- Includes DIN-rail mount and wall mount
- Power supply sold separately (model TI-S15052, TI-S12048)
- NDAA / TAA compliant (U.S. and Canada only)
General Information
Specifications
ADI Part Number TQ-TIIG90 Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TI-IG90 Product Model TI-IG90 Product Name Hardened Industrial 90W Gigabit 4PPoE Injector Product Series TI Product Type PoE Injector Weight 5.43oz
Operating Relative Humidity (H-H) 0.95 Operating Temperature (T-T) -40-167°F
Input Ports Gigabit Ethernet Output Ports Gigabit PoE
Data Transfer Rate 10 Mbps, 100 Mbps, 20 Mbps, 200 Mbps, 2000 Mbps
Color Black Form Factor External Height 3" Width 5"
Input Voltage 52-56V DC Maximum Output Power 90W
Length 10" Mount Type DIN Rail Mount, Wall Mount Protection Type Overload Protection
Limited Warranty 3-Year
Certifications & Standards CE, FCC, Freefall (IEC 60068-2-32), IEC EN60950-1, Shock (IEC 60068-2-27), Vibration (IEC 60068-2-6) Country of Origin TW Package Contents - Hardened Industrial 90W Gigabit 4PPoE Injector
- Quick Installation Guide
- Removable terminal block
- DIN-rail and wall mount kit
