TRENDnet TI-PE50 5-Port Industrial Fast Ethernet DIN-Rail Switch, 1Gbps

TRENDnet TI-PE50 5-Port Industrial Fast Ethernet DIN-Rail Switch, 1Gbps

TRENDnet TI-PE50 5-Port Industrial Fast Ethernet DIN-Rail Switch, 1Gbps
TI-PE50 | TQ-TIPE50
Please sign in to view pricing and availability and to add to cart.
Product Overview
TRENDnet's Industrial Fast Ethernet PoE+ DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial unmanaged PoE+ switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection on each industrial unmanaged PoE+ switch minimizes network downtime.Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Fast Ethernet Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. PoE+ Power: A 90W PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power. Fault Tolerance The industrial Ethernet switch features redundant power inputs. Industrial Hardened Design: Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 - 75°C (-40 - 167°F). PACKAGE CONTENTS: TI-PE50; Quick Installation Guide; Removable terminal block; DIN-rail / wall mount kit
Main Features

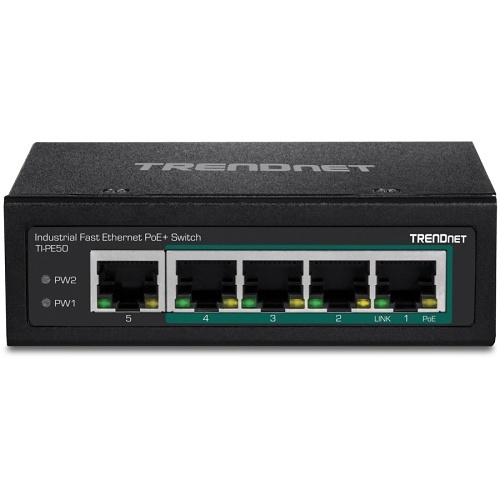

- 4 x Fast Ethernet PoE+ ports
- 1 x Fast Ethernet port
- Power supply sold separately (model: TI-S12048)
- 90W PoE power budget
- 1Gbps switching capacity
- Hardened IP30 rated metal switch

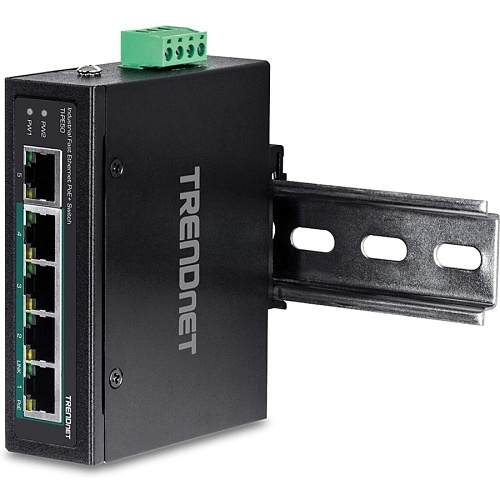

- Includes DIN-Rail mount and wall mount brackets
- Wide operating temperature range of -40° - 75°C (-40° - 167°F)

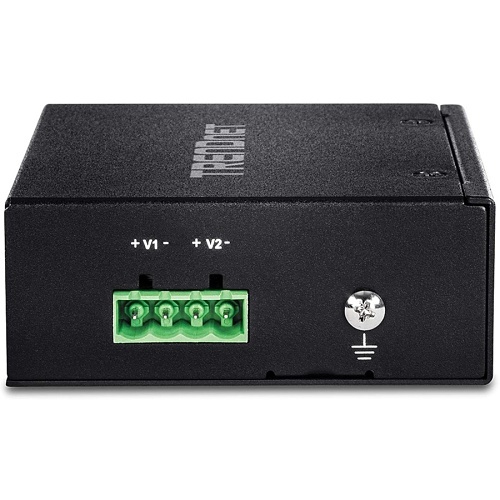

- Dual inputs provide redundant power with overload current protection
- Lifetime TRENDnet Manufacturer's Warranty
General Information
Specifications
ADI Part Number TQ-TIPE50 Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TI-PE50 NDAA Compliant Yes Product Line Industrial Product Model TI-PE50 Product Name 5-Port Industrial Fast Ethernet PoE+ DIN-Rail Switch Product Series TI Product Type Ethernet Switch Weight 1.37lb
Material Metal Media Type Supported Twisted Pair Power Consumption 2.24W
Shared SFP Slot No
Modular No Total Number of Network Ports 5 Uplink Port No
Manageable Yes
Network Technology 10/100Base-T
Ethernet Technology Fast Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Depth 10" Form Factor DIN Rail Mount, Wall Mount Height 3" Width 5"
Input Voltage 12-56V DC PoE (RJ-45) Port No PoE Budget 90W Power Source Power Supply
Length 4.1" Mount Type Desktop Mount
Limited Warranty Lifetime
Environmental Certification CE, FCC Environmentally Friendly Yes Package Contents DIN-Rail / wall mount kit, Quick Installation Guide, Removable terminal block, TI-PE50 TAA Compliant Yes
