TRENDnet TI-PG50 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, 10Gbps
TI-PG50|TQ-TIPG50
TRENDnet TI-PG50 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, 10Gbps
TI-PG50|TQ-TIPG50
TRENDnet
TRENDnet TI-PG50 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, 10Gbps
TI-PG50 | TQ-TIPG50
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

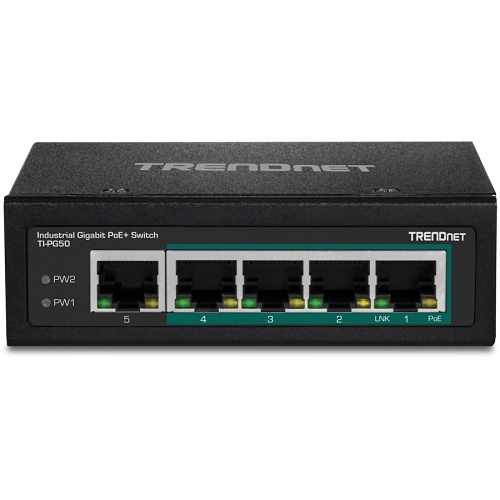

TRENDnet's 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG50, has four gigabit PoE+ ports with a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial switch, while simultaneously providing a non-PoE gigabit port for connectivity to the network. The TI-PG50 industrial switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
Main Features
- 4 x Gigabit PoE+ ports, 1 x Gigabit port,120W PoE power budget,10Gbps switching capacity
- Power supply sold separately (models: TI-S12048, TI-S24048, and 48VDC3000)
- Supports jumbo frames up to 9KB
- Hardened IP30 rated metal housing, Includes wall mounting and DIN-Rail brackets
- Operating temperature range of -40° - 75° C (-40° - 167° F)

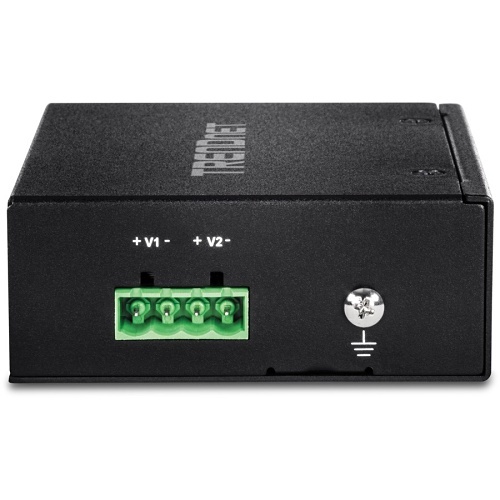

- Dual redundant power inputs with overload current protection
- Alarm relay triggered by power failure
- Lifetime TRENDnet Manufacturer's Warranty
- Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048)
General Information
Name: TRENDnet TI-PG50 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, 10Gbps
Category: TRENDnet, Data Comm & Networking, Hubs, Routers & Switches, Network Switches, ADI Pro Rewards
UPC Code: 710931161717
Country of Origin: TW. Country of origin is subject to change.
Specifications
ADI Part Number TQ-TIPG50 Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TI-PG50 NDAA Compliant Yes Product Line Industrial Product Model TI-PG50 Product Name 5-Port Industrial Gigabit PoE + DIN-Rail Switch Product Series TI Product Type Ethernet Switch Weight 12.80oz
Material Metal Media Type Supported Twisted Pair Power Consumption 2.24W
Shared SFP Slot No
Modular No Total Number of Network Ports 5 Uplink Port No
Manageable No
Network Technology 10/100/1000Base-T
Ethernet Technology Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Depth 7" Form Factor DIN Rail Mount, Wall Mount Height 3" Width 4"
Input Voltage 48-56V DC PoE (RJ-45) Port No PoE Budget 120W Power Source Power Supply
Limited Warranty Lifetime
Environmental Certification CEC, RoHS, WEEE Environmentally Friendly Yes Package Contents - 5-Port Industrial Gigabit PoE+ DIN-Rail Switch
- Quick Installation Guide
- Removable Terminal Block
- DIN-Rail and Wall Mount Kit
TAA Compliant Yes
