TRENDnet TI-PG80 8-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch, 16Gbps
TI-PG80|TQ-TIPG80
TRENDnet TI-PG80 8-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch, 16Gbps
TI-PG80|TQ-TIPG80
TRENDnet
TRENDnet TI-PG80 8-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch, 16Gbps
TI-PG80 | TQ-TIPG80
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

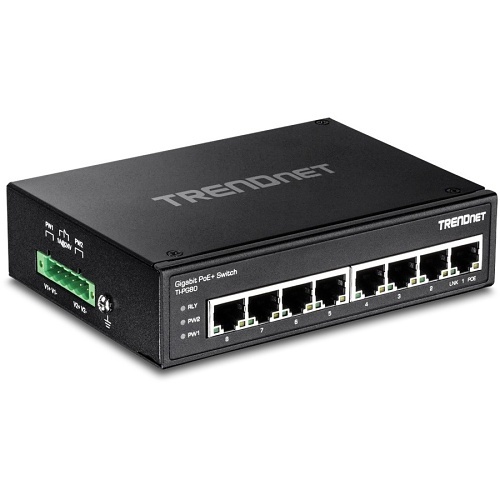

TRENDnet's TI-PG80 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers 8 Gigabit PoE+ ports (802.3at/802.3af) and a PoE power budget of up to 200 Watts. Dual redundant power inputs (power supply sold separately: TI-S24048) and a power failure alarm output trigger support zero downtime applications.
Main Features
- ETHERNET PORT INTERFACE: 8 x Gigabit PoE+ Ethernet ports
- FULL POE+ POWER BUDGET & SWITCHING CAPACITY: The Gigabit PoE+ switch supplies up to 30 Watts of PoE / PoE+ power per port with a 200 Watt PoE power budget and allows for a 16 Gbps switching capacity.

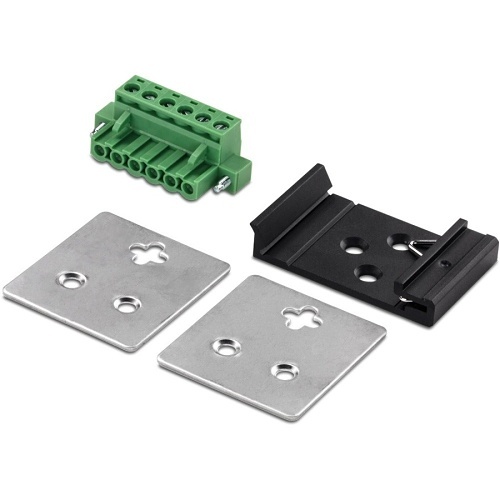

- DIN-RAIL & WALL MOUNT KIT: This 8-Port Gigabit PoE+ network switch comes with an integrated DIN-Rail mount and mounting hardware.
- EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated Gigabit PoE+ Ethernet switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments.
- REDUNDANT POWER: The 8 port switch has dual redundant power inputs with overload current protection (power supply sold separately: model: (TI-S24048)
- TRENDnet LIFETIME PROTECTION: All metal TRENDnet switches come with lifetime manufacturer protection.
- Powers supply sold separately (Model TI-S24052, TI-S24048)
- Alarm output triggered by power failure
- Powers supply sold separately (Model TI-S24048)
- Lifetime Warranty*
General Information
Name: TRENDnet TI-PG80 8-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch, 16Gbps
Category: TRENDnet, Data Comm & Networking, Hubs, Routers & Switches, Network Switches, ADI Pro Rewards
UPC Code: 710931160352
Country of Origin: TW. Country of origin is subject to change.
Specifications
ADI Part Number TQ-TIPG80 Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TI-PG80 NDAA Compliant Yes Product Line Industrial Product Model TI-PG80 Product Name 8-port hardened Industrial Gigabit PoE+ Switch Product Series TI Product Type Ethernet Switch Weight 14.96oz
Material Metal Media Type Supported Twisted Pair Power Consumption 5.76W
Shared SFP Slot No
Modular No Total Number of Network Ports 8 Uplink Port No
Manageable No
Network Technology 1000Base-T
Ethernet Technology Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Depth 7" Form Factor Rail Mount, Wall Mount Height 3" Width 5"
Input Voltage 48-56V DC PoE (RJ-45) Port No PoE Budget 200W Power Source Power Supply
Limited Warranty Lifetime
Environmental Certification CE, FCC Environmentally Friendly Yes Package Contents DIN-Rail / wall mount kit, Quick Installation Guide, Removable terminal block, TI-PG80 TAA Compliant Yes
