TI-PG80F | TQ-TIPG80F
Please sign in to view pricing and availability and to add to cart.
Product Overview

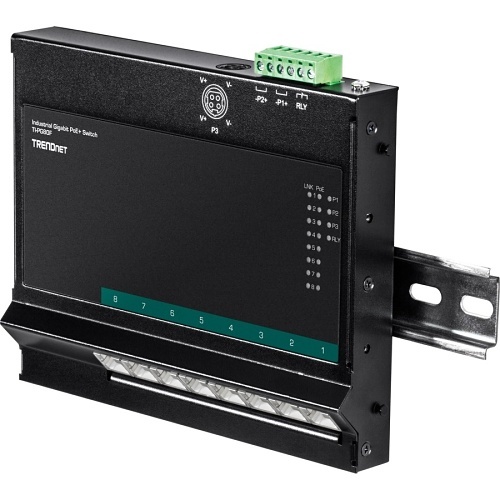

TRENDnet's Industrial Gigabit PoE Wall-Mounted Front Access Switch Series are well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE ports for connecting devices such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
Main Features
- 8 x Gigabit PoE+ ports, 200W PoE power budget, 16Gbps switching capacity
- Power supply sold separately (models: TI-S24052, TI-S24048, TI-S48048, and 48VDC3000)
- Supports jumbo frames up to 9KB

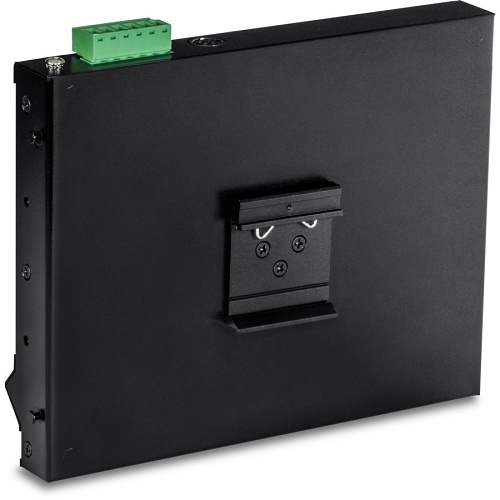

- Hardened IP30 rated metal housing, Includes wall mounting and DIN-Rail brackets
- Operating temperature range of -40° - 75° C (-40° - 167° F)
- Dual redundant power inputs with overload current protection
- Alarm relay triggered by power failure
- Lifetime TRENDnet Manufacturer's Warranty
- NDAA / TAA compliant (U.S. and Canada only)
General Information
Specifications
ADI Part Number TQ-TIPG80F Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TI-PG80F Product Line Industrial Product Model TI-PG80F Product Name 8-Port Industrial Gigabit PoE+ Wall-Mount Front Access Switch Product Series TI Product Type Ethernet Switch Weight 1.87lb
Media Type Supported Twisted Pair Power Consumption 160W
Shared SFP Slot No
Modular No Total Number of Network Ports 8 Uplink Port No
Manageable No
Network Technology 10/100/1000Base-T
Ethernet Technology Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Depth 9" Form Factor DIN Rail Mount, Wall Mount Height 3" Material Metal Width 7"
Input Voltage 48-56V DC PoE (RJ-45) Port No PoE Budget 200W Power Source Power Supply
Length 5.9" Mount Type Desktop Mount
Limited Warranty Lifetime
Country of Origin TW Environmental Certification CE, FCC Environmentally Friendly Yes Package Contents DIN-Rail, wall and magnet mount kit, Quick Installation Guide, Removable terminal block, TI-PG80F
