TI-XPG50 | TQ-TIXPG50
Please sign in to view pricing and availability and to add to cart.
Product Overview

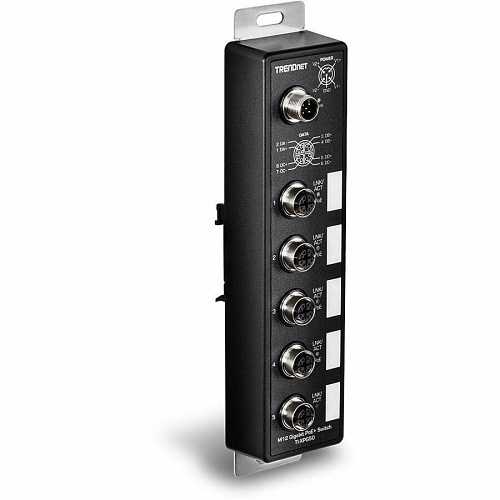

TRENDnet's 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch, model TI-XPG50, has four M12 gigabit PoE+ ports and one M12 gigabit port with a total PoE budget of up to 120W. This M12 Ethernet switch is equipped with an IP67 outdoor rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial EN50155 applications. The M12 Ethernet switch is designed and tested for mobile bus, train, other transportation and telecom applications.
EN50155 Compliant
This M12 Ethernet switch supports an input voltage range from 48 - 56V DC, with M12 interfaces for moving bus, train, and other rolling stock applications.
Industrial Design
Equipped with an IP67 rated metal enclosure, the M12 switch is designed to withstand vibration and shock, with a wide operating temperature range of -40° - 75° C (-40° - 167° F).
Power over Ethernet (PoE+)
Four M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with a total power budget of 120W@56V DC.
Main Features

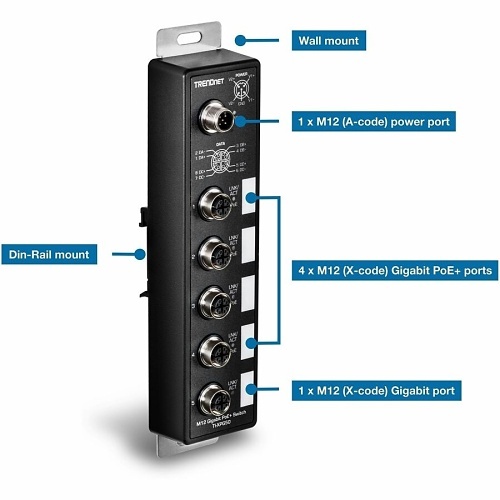

- 4 x M12 (X-code) Gigabit PoE+ ports
- 1 x M12 (X-code) Gigabit port
- 1 x M12 (A-code) power port
- PoE power budget: 120W@56V DC
- EN50155 compliant for rolling stock and railway applications
- Hardened IP67 outdoor rated metal housing
- 10Gbps switching capacity
- Operating temperature range of -40° - 75° C (-40° - 167° F)
- Includes DIN-Rail and wall mount kits
- M12 cables sold separately (models: TI-CD02, TI-CD05, TI-CP02)
General Information
Specifications
ADI Part Number TQ-TIXPG50 Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TIXPG50 Product Model TI-XPG50 Product Name 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch Product Type Ethernet Switch Weight 12.98oz
Media Type Supported Twisted Pair Power Consumption 5W
Network (RJ-45) Yes Total Number of Network Ports 5
Network Technology 10/100/1000Base-T
Ethernet Technology 10 Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE802.3af
Color Black Depth 2" Form Factor DIN Rail Mount, Wall Mount Height 1.1" Width 8.7"
Input Voltage 48V DC, 56V DC PoE (RJ-45) Port Yes PoE Budget 120 W Power Source DC, PoE+, Power Supply
Mount Type DIN Rail Mount, Wall Mount
Limited Warranty Lifetime
Country of Origin TW Environmental Certification CE, FCC Environmentally Friendly Yes Features IP67 Package Contents - 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch
- Quick Installation Guide
- Wall mount and DIN-Rail kit
