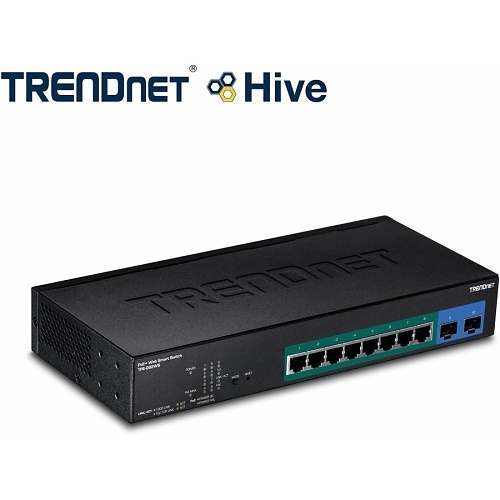

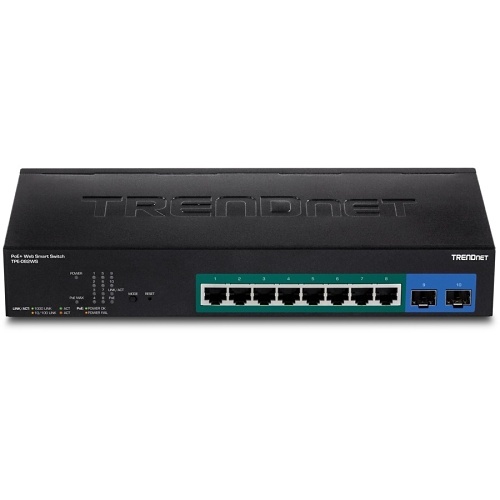

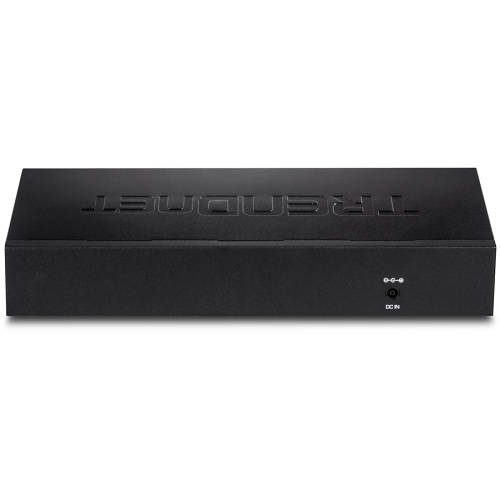

TRENDnet TPE-082WS 10-Port Gigabit Web Smart PoE+ Switch

TRENDnet TPE-082WS 10-Port Gigabit Web Smart PoE+ Switch

TRENDnet TPE-082WS 10-Port Gigabit Web Smart PoE+ Switch
TPE-082WS | TQ-TPE082WS
Please sign in to view pricing and availability and to add to cart.
Product Overview
TRENDnet’s Gigabit Web Smart PoE Switch series offers advanced L2 features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to this managed switch by using the L2 IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet’s web smart managed switches also feature SFP slots to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Web Smart PoE Managed Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE managed switch, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. Easily manage and configure TRENDnet’s Web Smart PoE Managed Switch Series remotely by updating switches to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required on these cloud managed switches with TRENDnet’s reliable cloud service.
Main Features
- ETHERNET PORT INTERFACE: 8 x PoE+ Gigabit ports, 2 x SFP slots
- WEB SMART MANAGEMENT: This gigabit web smart switch provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.
- MANAGED FEATURES: This PoE+ switch allows for integration flexibility with managed features that include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
- POE POWER BUDGET & SWITCH CAPACITY: This fanless 10 Port Gigabit PoE+ Switch has 8 x Gigabit PoE+ ports that supply 30W of PoE+ power per port with a 75 Watts total power budget while delivering 20 Gbps switching capacity.
- TRAFFIC MANAGEMENT: This web smart Ethernet switch has a broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling.
- TROUBLESHOOTING CAPABILTIES: The network switch can perform a convenient cable diagnostic test and traffic statistics aid in network troubleshooting
- MONITORING: Features such as RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions
- TRENDnet LIFETIME PROTECTION: All metal TRENDnet switches come with lifetime manufacturer protection.
- NDAA / TAA compliant (U.S. and Canada only)
- 20Gbps switching capacity
General Information
Specifications
ADI Part Number TQ-TPE082WS Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TPE-082WS NDAA Compliant Yes Product Line Web Smart Product Model TPE-082WS Product Name 10-Port Gigabit Web Smart PoE+ Switch Product Series TPE Product Type Ethernet Switch Weight 6.23lb
Material Metal Media Type Supported Optical Fiber, Twisted Pair Power Consumption 82W
Expansion Slot Type SFP Number of SFP Slots 2 Number of SFP+ Slots 2 Number of Total Expansion Slots 2 Shared SFP Slot No
Modular Yes Total Number of Network Ports 10 Uplink Port No
Manageable Yes
Network Technology 1000Base-T, 1000Base-X
Ethernet Technology Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compatible Rack Unit 1U Depth 7" Form Factor Rack Mount Height 13.9" Width 11"
Frequency 50 Hz, 60 Hz Input Voltage 100-240V AC PoE (RJ-45) Port No PoE Budget 75W Power Source Power Supply
Length 11" Mount Type Desktop Mount
Limited Warranty Lifetime
Environmental Certification CE, FCC Environmentally Friendly Yes Package Contents CD-ROM (Utility & User's Guide), Power adapter (54V DC, 1.67A), Quick Installation Guide, Rack Mount Kit, TPE-082WS TAA Compliant Yes
