TPE-3102WS | TQ-TPE3102WS
Please sign in to view pricing and availability and to add to cart.
Product Overview
TRENDnet’s Multi-Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. Each of these rack-mountable IPv6-ready managed switches come with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making these 2.5G managed PoE+ switches with 10G SFP+ slots powerful solutions for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
Main Features

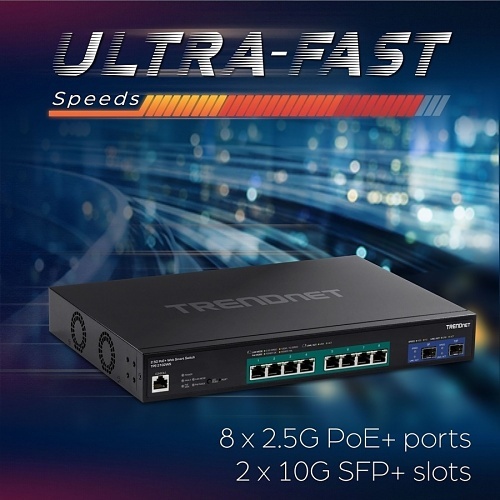

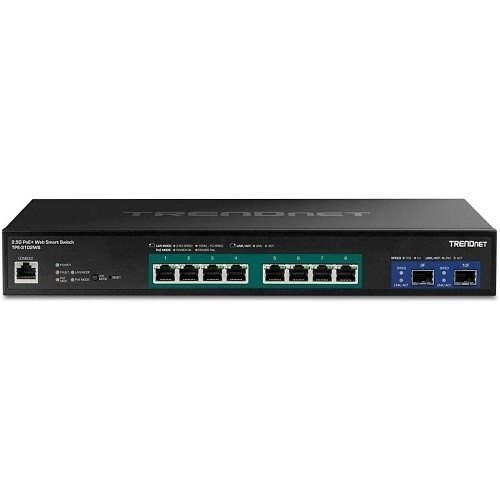

- DEVICE INTERFACE: 8 x 2.5GBASE-T PoE+ Ports; 2 x 10G SFP+ Slots; LED Indicators; Metal Housing

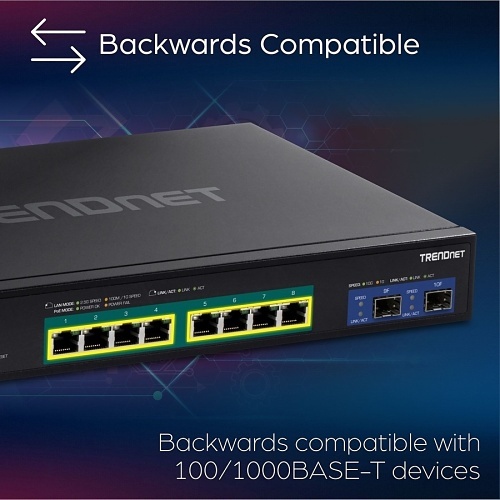

- 2.5G PORTS: This 12 Port Multi-Gig PoE+ Ethernet switch is equipped with eight 2.5GBASE-T RJ-45 ports that provide multigigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
- 10G SFP+ SLOTS: The managed switch offers two 10G SFP+ slots for high-speed network connections providing a costeffective solution in adding 10G link capability.
- POE POWER: Supplies up to 30W of PoE+ power per port with a 240W power budget
- EASY INSTALLATION: No configuration needed, simply connect network devices to the Gigabit Ethernet switch
- SWITCHING CAPACITY: 80Gbps switching capacity
- TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric
- VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth
- management, and QoS queue scheduling
- WEB SMART MANAGEMENT: Provides an easy-to-use web-based GUI management for reduced switch configuration
General Information
Specifications
ADI Part Number TQ-TPE3102WS Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TPE-3102WS Product Line Web Smart Product Model TPE-3102WS Product Name 10-Port Multi-Gig Web Smart PoE+ Switch Product Type PoE Multigig Weight 4.99lb
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 60W
Expansion Slot Type SFP+ Number of SFP+ Slots 2 Number of Total Expansion Slots 2
Modular Yes Network (RJ-45) Yes Total Number of Network Ports 10
Manageable Yes
Network Technology 10GBase-X, 2.5GBase-T
Ethernet Technology 10 Gigabit Ethernet Layer Supported 3 Networking Standards IEEE 802.1ab, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compatible Rack Unit 1U Depth 9.1" Form Factor Rack Mount Height 1.7" Material Metal Width 13"
Frequency 50 Hz, 60 Hz Input Voltage 120V AC, 230V AC PoE (RJ-45) Port Yes PoE Budget 240W Power Source Power Supply
Limited Warranty Lifetime
Country of Origin TW Package Contents - 10-Port Multi-Gig Web Smart PoE+ Switch
- Quick Installation Guide
- Power Cord (1.5m / 5 ft.)
- Rackmount Brackets
