TRENDnet TPE-P521ES 5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass-Through, 10 Gbps
TPE-P521ES|TQ-TPEP521ES
TRENDnet TPE-P521ES 5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass-Through, 10 Gbps
TPE-P521ES|TQ-TPEP521ES
TRENDnet
TRENDnet TPE-P521ES 5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass-Through, 10 Gbps
TPE-P521ES | TQ-TPEP521ES
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

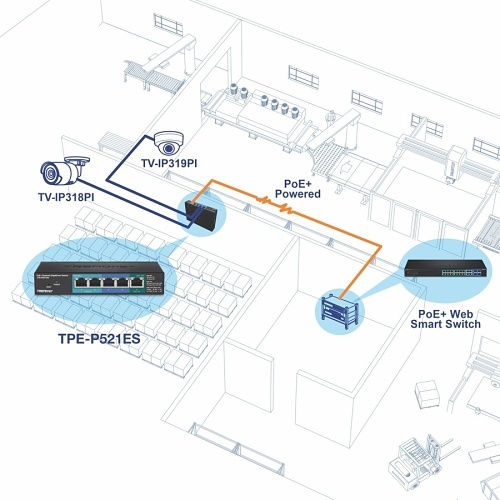

5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass Through, model TPE-P521ES, is powered by a PoE+ switch or injector, no AC adapter is required. It features two gigabit non-PoE ports, and two gigabit PoE ports to power devices such as IP cameras, VoIP handsets, and wireless access points. Reducing unnecessary switch complexity, this EdgeSmart switch is equipped with only the most commonly used managed switch features. The simple web-based user interface allows you to easily manage VLANs, QoS, and monitoring.
Main Features

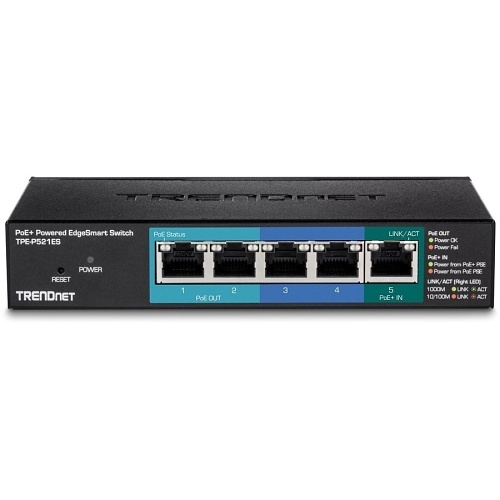

- ETHERNET PORT CONFIGURATION 1 x Gigabit PoE+ input port 2 x Gigabit PoE output ports 2 x Gigabit ports
- EDGESMART NETWORK MANAGEMENT Provides an easy-to-use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment A broad range of network configurations are supported by 802 3ad link aggregation 802 1Q VLAN bandwidth controls IGMP loopback detection port mirroring and 802 1p (QoS)
- INTEGRATION FLEXIBILITY Managed features include loopback detection RSTP static link aggregation VLAN IGMP Snooping and QoS for flexible network integration
- PoE+ POWER This Gigabit PoE+ switch is equipped with two gigabit PoE pass through ports with an 18W total PoE power budget
- COMPACT FANLESS DESIGN With a fanless compact and lightweight metal housing design this switch is well-suited for desktop and wall mount installations
- Supports static link aggregation, VLAN, QoS, STP, RTSP and IGMP Snooping
- Voice VLAN for VoIP applications
- Bandwidth control per port
- 10Gbps switching capacity
- IEEE 802.1p QoS with queue scheduling support
General Information
Name: TRENDnet TPE-P521ES 5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass-Through, 10 Gbps
Category: TRENDnet, Data Comm & Networking, Hubs, Routers & Switches, Network Switches, ADI Pro Rewards
UPC Code: 710931161229
Country of Origin: TW. Country of origin is subject to change.
Specifications
ADI Part Number TQ-TPEP521ES Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TPE-P521ES NDAA Compliant Yes Product Line EdgeSmart Product Model TPE-P521ES Product Name 5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass Through (15W) Product Series TPE Product Type Ethernet Switch Weight 1.60lb
Material Metal Media Type Supported Twisted Pair Power Consumption 20.40W
Shared SFP Slot No
Modular No Total Number of Network Ports 5 Uplink Port No
Manageable Yes
Network Technology 1000Base-T
Ethernet Technology Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Depth 9" Form Factor Wall Mount Height 4" Width 5"
Frequency 50 Hz, 60 Hz Input Voltage 100-240V AC PoE (RJ-45) Port No PoE Budget 18W Power Source PoE
Length 5.9" Mount Type Desktop Mount
Limited Warranty Lifetime
Environmental Certification CE, FCC Environmentally Friendly Yes Package Contents Quick Installation Guide, TPE-P521ES TAA Compliant Yes
