SurgeX ESP-BP-3C-126 BasePak Single Stage Surge Protection, 3' Power
ESP-BP-3C-126|U7-ESPBP3C12
SurgeX ESP-BP-3C-126 BasePak Single Stage Surge Protection, 3' Power
ESP-BP-3C-126|U7-ESPBP3C12
SurgeX
SurgeX ESP-BP-3C-126 BasePak Single Stage Surge Protection, 3' Power
ESP-BP-3C-126 | U7-ESPBP3C12
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

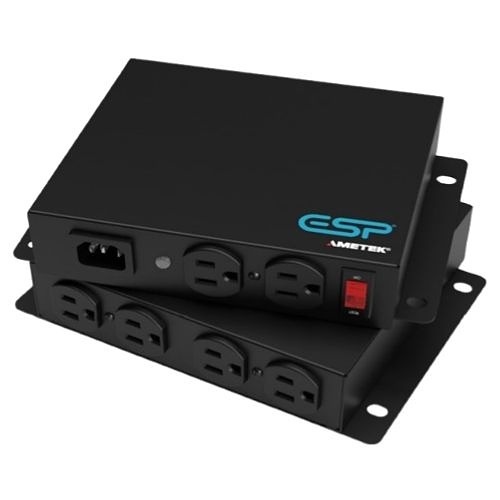

The BasePak ESP-BP-3C-126 is designed to be installed horizontally or vertically, mounted to a wall or table. It shall operate from 120VAC and has a 3', grounded, 3-wire #14 AWG line cord. There shall be a total of 6 grounded AC receptacles on the front and rear panel. The ESP-BP-3C-126 shall have a load rating of 12A at 120V. Overall dimensions shall be 8.46"Lx6.15"Dx1.86"H. The box material of construction is metal.
Main Features
- On / Off Switch with a built-in 15A circuit breaker
- Input connection type NEMA 5-15P
- 3' Power cord
- Output connection type NEMA 5-15R
- 6-Outlets (3 Duplex receptacles)
- 120VAC, 12A, 50/60 Hz, 1500W
- Single-stage surge protection
- Surge protection status LED
General Information
Name: SurgeX ESP-BP-3C-126 BasePak Single Stage Surge Protection, 3' Power
Category: SurgeX, Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number U7-ESPBP3C12 Brand Name SurgeX Manufacturer Part Number ESP-BP-3C-126 Product Name ESP-BP-3C-126 Power Distribution Product Type Power Distribution Unit Sector Data Comm & Networking
Depth 6.15" Height 1.86"
Input Voltage 120V AC
