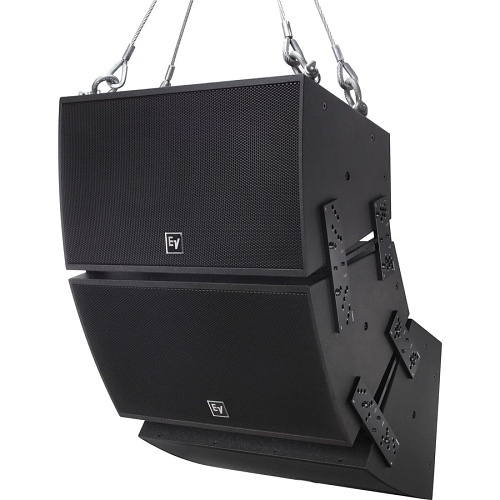

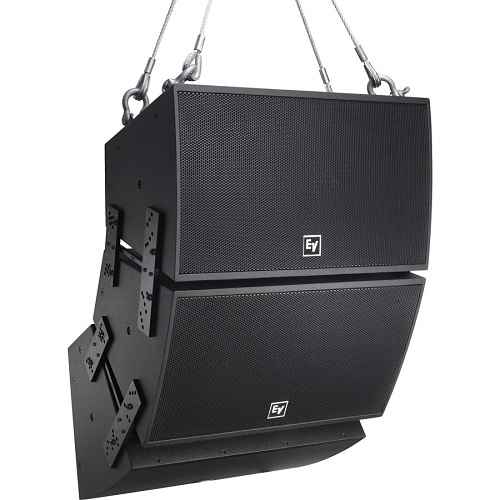

Image of UV-15D43PIB
Electro-Voice by Bosch

Bosch EVF-1152D/43-PIB 40"x30" EVF-1152D EVCoat Weatherized Speaker

EVF-1152D/43-PIB|UV-15D43PIB
Electro-Voice by Bosch

Bosch EVF-1152D/43-PIB 40"x30" EVF-1152D EVCoat Weatherized Speaker

EVF-1152D/43-PIB|UV-15D43PIB

Sign In for Dealer Pricing

Become an ADI Customer
Image of UV-15D43PIB
Electro-Voice by Bosch

Bosch EVF-1152D/43-PIB 40"x30" EVF-1152D EVCoat Weatherized Speaker

EVF-1152D/43-PIB | UV-15D43PIB

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Key Features:

  • DH7N 3" (76 mm) diaphragm, 1.4" (36 mm) exit pure titanium compression driver
  • DVX3151A 15" (381 mm) LF transducer with fully symmetric drive
  • Advanced fourth-order crossover network with HF protection
  • Coverage pattern: 40° x 30° Constant Directivity™ 12" rotatable waveguide
  • 100 dB sensitivity, 134 dB maximum SPL
  • System rating: 600 W continuous, 2400 W peak
  • Active rating: LF 500 W/HF 75 W continuous (2000 W/300 W peak)
  • (22) M10 threaded suspension points
  • PI version available with gland nut and stainless-steel grille
General Description:

The Electro-Voice EVF-1152D/43 is a high-power, two-way loudspeaker system that can be used in a variety of applications where high-quality sound reinforcement is required in a compact, lightweight package.

The EVF-1152D/43 utilizes the DH7N, a high-output 3" titanium compression driver, coupled to a Constant Directivity™ 40° x 30° waveguide. The DVX3151A 15" woofer was developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.

The EVF-1152D/43's features make it ideal for many fixed-install applications. The trapezoidal enclosure is constructed of weather-resistant birch, and coated with EVCoat™ for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With seven horn patterns to choose from, along with an assortment of low-frequency and subwoofer loudspeakers, you have the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides a choice of Phoenix-style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems. All these features give you the flexibility to address a large range of venues, quickly and precisely supporting customer requirements with fewer items in inventory.

Main Features

  • Significantly enhance the sound from your devices and drives, get immersed in sound quality
  • The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
  • 8 Ohm impedance extracts maximum power so you will get more output from your speakers
  • Hear every detail crisp and clear with a frequency response of 40 Hz-21 kHz
  • Knock yourself out with 600 W RMS power
  • 15" woofer driver size allows better stereo imaging with maximum sound feasibility
  • 3" tweeter driver size provides crispier, well-detailed sound with maximum productivity
  • Offers great productivity with 21 kHz maximum frequency response
  • 134 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
  • 30.3" height for efficient frequency access and optimal operation

General Information

Name: Bosch EVF-1152D/43-PIB 40"x30" EVF-1152D EVCoat Weatherized Speaker
Category: Electro-Voice, Pro AV, Commercial Audio, Pro Speakers
UPC Code:
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Manufacturer Brochure
