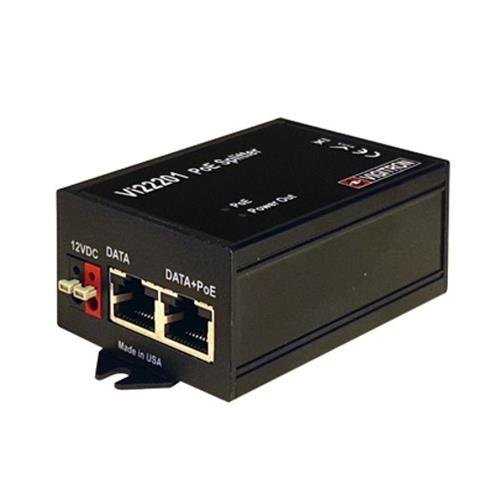

Vigitron VI22201 MaxiiPower PoE Splitter, 12/24VDC
Vigitron VI22201 MaxiiPower PoE Splitter, 12/24VDC
Vigitron VI22201 MaxiiPower PoE Splitter, 12/24VDC
VI22201 | VG-VI22201
Please sign in to view pricing and availability and to add to cart.
Product Overview
The Vi22201 is a PoE splitter that is fully compliant with IEEE 802.3af and with IEEE 802.3at standards. When used with a PoE switch or PoE Midspan, it separates PoE from Ethernet data and regulates the PoE high voltage to 12VDC or 24VDC.
It is designed to power Non-PoE IP devices and can provide 12VDC or 24VDC at up to 30W. The output voltage is selected by a slideswitch. The Vi22201 is equipped with over current protection to safeguard connected devices and can operate at extended temperature of-40°C to +85°C. It is cost effective and compact in size and fit easily in most camera housings.
The Vi22201 is an ideal solution that provides remote power to non-PoE IP devices to save installation time and cost.
Main Features
- Compatible with all IEEE 802.3af/at PoE sources
- Pass through data for device IP control and monitor
- Compatible with Vi2300A UTP and Vi2400A coax extenders for distances up to 2,000 ft.
General Information
Specifications
ADI Part Number VG-VI22201 Brand Name Vigitron Manufacturer Part Number VI22201
