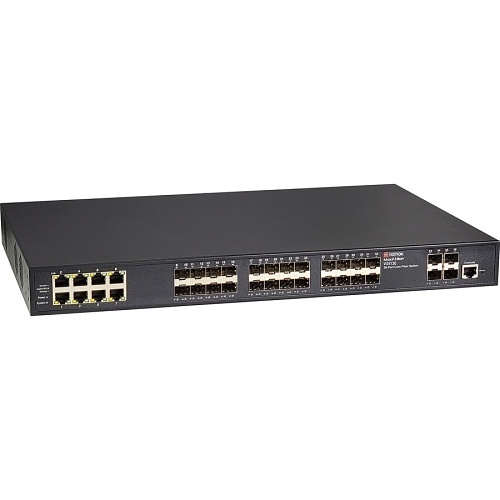

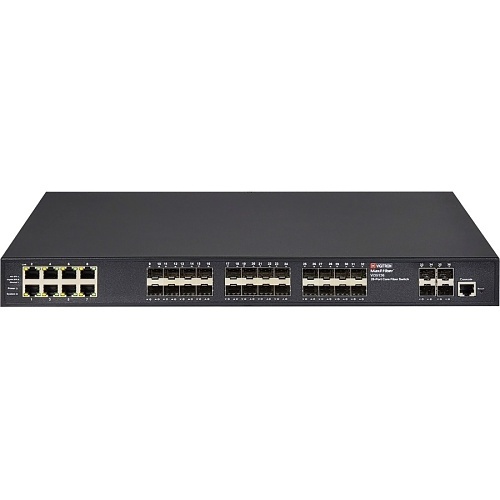

Vigitron Vi35136 MaxiiNet 36-Port L2 /L3 Lite Managed Hybrid Ethernet CAT Fiber/Copper Core Network Switch
VI35136|VG-VI35136
Vigitron Vi35136 MaxiiNet 36-Port L2 /L3 Lite Managed Hybrid Ethernet CAT Fiber/Copper Core Network Switch
VI35136|VG-VI35136
Vigitron
Vigitron Vi35136 MaxiiNet 36-Port L2 /L3 Lite Managed Hybrid Ethernet CAT Fiber/Copper Core Network Switch
VI35136 | VG-VI35136
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Vi35136 has 8 copper 1G ports, 24, 1G fiber ports, and 4, 1G/2.5G/10G fiber ports meeting all networking core requirements.
Main Features
- Hybrid Ethernet CAT Copper and Fiber connections
- (8) 10/100/1000 Mbps RJ45 Copper ports
- (24) 100/10000 Mbps Fiber SFP Ports
- (4) 1G/2.5G/10G SFP uplink ports
- 36 independent ports
- L2+/L3 Lite

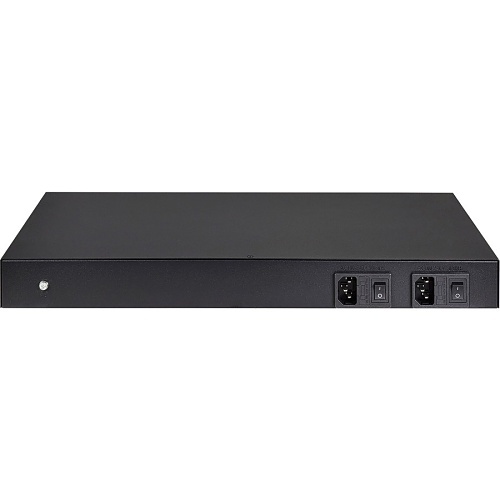

- Dual AC power input for built-in backup
- Full Layer 2+ and Layer 3 lite static routing
- Jumbo Frame handling up to 10,240 bytes, even at 100Mbps
- G.8032 V1/V2 standard ring protocol
General Information
Name: Vigitron Vi35136 MaxiiNet 36-Port L2 /L3 Lite Managed Hybrid Ethernet CAT Fiber/Copper Core Network Switch
Category: Vigitron, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code:
Country of Origin: CN. Country of origin is subject to change.
Specifications
ADI Part Number VG-VI35136 Brand Name Vigitron Manufacturer Vigitron, Inc Manufacturer Part Number VI35136 NDAA Compliant Yes Packaged Quantity 1 Product Line MaxiiNet Product Model Vi35136 Product Name 36-Port L2+/L3 Lite Managed Fiber/Copper Core Network Switch Product Type Ethernet Switch Weight 9.70lb
Material Aluminum Media Type Supported Optical Fiber, Twisted Pair
Expansion Slot Type SFP (mini-GBIC), SFP+ Number of SFP Slots 24 Number of SFP+ Slots 4 Number of Total Expansion Slots 28
Connector Type MSA - Fiber Modular Yes Network (RJ-45) Yes Total Number of Network Ports 36 Uplink Port Yes
Manageable Yes
Network Technology 10/100/1000Base-T, 1000Base-X, 10GBase-X
Ethernet Technology 10 Gigabit Ethernet Layer Supported 3 Networking Standards IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Form Factor Rack Mount Height 17.4" Width 1.8"
Frequency 50 Hz, 60 Hz Input Voltage 120V AC, 230V AC Plug/Connector Type IEC Connector Power Source Power Supply
Length 11.4"
Environmental Certification RoHS, WEEE Environmentally Friendly Yes Features 36 port UTP/Coax Hybrid network core Switch Package Contents - 36-Port L2+/L3 Lite Managed Fiber/Copper Core Network Switch
- 2 x Molded IEC 7 ft. (200 cm) Power Cord
- Mounting Kit
- Console Cable
- USB Memory Stick
- Operations Manual
- Datasheet
TAA Compliant No
