Genesis 21075509 22/8 Stranded Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray
21075509|WG-21075509
Genesis 21075509 22/8 Stranded Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray
21075509|WG-21075509
Genesis
Genesis 21075509 22/8 Stranded Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray
21075509 | WG-21075509
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Unshielded Multiconductor Cables offer a versatile solution for various signal and limited-power transmission applications.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 21075509 22/8 Stranded Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray
Category: Genesis, Wire & Cable, Security & Access Control Cables, Riser Unshielded Cables
UPC Code: 619172011228
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number WG-21075509 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 21075509 Packaged Quantity 1 Product Model 21075509 Product Name Genesis 21075509 22/8 Stranded Unshielded Riser Rated Cable, 500' (152.4 m) Pull Box, Gray jacket Product Type Access & Security Cable
American Wire Gauge 22AWG Cable Rating Riser Cable Type Multi-conductor/Multi-pair Jacket Type FT4, Riser Number of Conductors 8 Shielding No Solid or Stranded Stranded

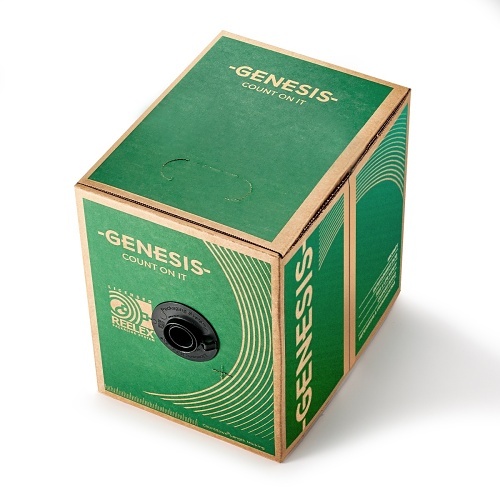

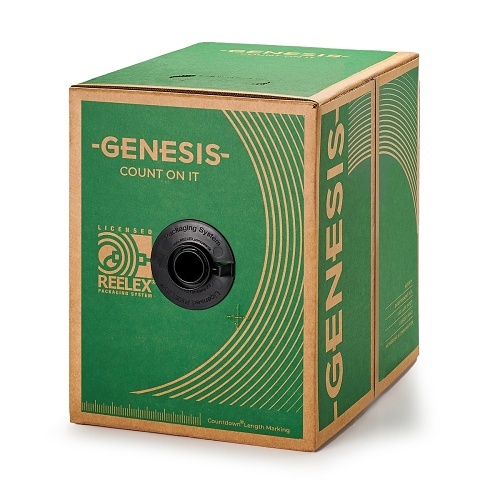

Cable Length 500' Color Gray Insulation Material PP Jacket Material PVC Material Bare Copper Package Type REELEX Pull Box
Limited Warranty 3 Year; 3-for-1
Country of Origin US Environmental Certification RoHS Indoor/Outdoor Indoor
