Genesis 21145509 18/2 Stranded Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray
21145509|WG-21145509
Genesis 21145509 18/2 Stranded Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray
21145509|WG-21145509
Genesis
Genesis 21145509 18/2 Stranded Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray
21145509 | WG-21145509
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Unshielded Multiconductor Cables offer a versatile solution for various signal and limited-power transmission applications.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 21145509 18/2 Stranded Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray
Category: Genesis, Wire & Cable, Security & Access Control Cables, Riser Unshielded Cables
UPC Code: 619172011785
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number WG-21145509 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 21145509 Packaged Quantity 1 Product Model 21145509 Product Name 21145509 Control Cable Product Type Access & Security Cable
American Wire Gauge 18AWG Cable Rating Riser Cable Type Multi-conductor/Multi-pair Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 18/4 Device Supported Burglar Alarm, Intercom, Phone, Speaker Jacket Type FT4, Riser Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Stranded

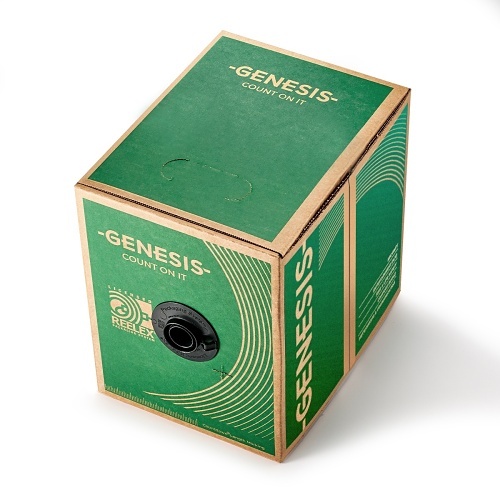

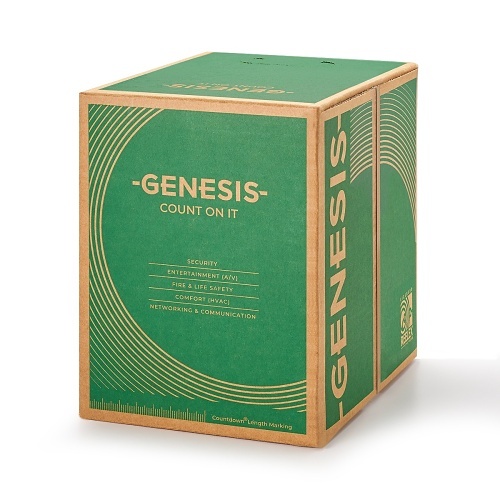

Cable Length 500' Color Gray Insulation Material PP Jacket Material PVC Material Bare Copper Package Type REELEX Pull Box
Limited Warranty 3 Year; 3-for-1
Country of Origin US Environmental Certification RoHS Features Stranded Indoor/Outdoor Indoor
