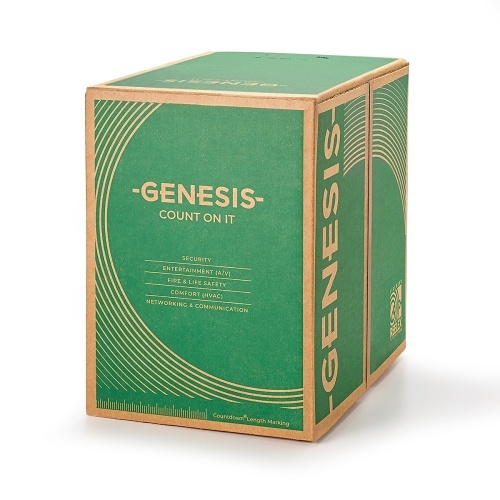

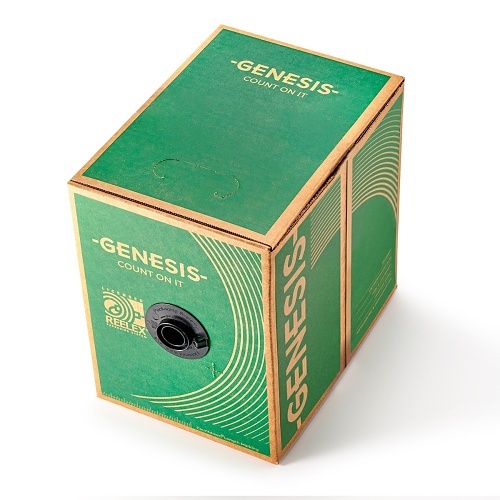

Genesis 32021112 22/2 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural
32021112|WG-32021112
Genesis 32021112 22/2 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural
32021112|WG-32021112
Genesis
Genesis 32021112 22/2 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural
32021112 | WG-32021112
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Shielded Multiconductor Cables offer a versatile solution for various applications. These shielded cables minimize electrical noise and interference to protect sensitive signals.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 32021112 22/2 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural
Category: Genesis, Wire & Cable, Security & Access Control Cables, Plenum Shielded Cables
UPC Code: 619172015776
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number WG-32021112 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 32021112 Packaged Quantity 1 Product Model 32021112 Product Name 32021112 Control Cable Product Type Access & Security Cable
American Wire Gauge 22AWG Cable Rating Plenum Cable Type Multi-conductor/Multi-pair Core/Cladding Diameter 22/2 Device Supported Burglar Alarm, Intercom, Phone, Speaker Jacket Type Riser Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded
Cable Length 1000' Color Natural Insulation Material LS-PVC Jacket Material LS PVC Material Bare Copper Package Type REELEX Pull Box
Limited Warranty 3 Year; 3-for-1
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
