Genesis 32061112 22/6 Stranded Shielded Plenum Cable, CL3P, FPLP, CMP, FT6, 1000' (304.8m), REELEX Pull Box, Natural White
32061112|WG-32061112
Genesis 32061112 22/6 Stranded Shielded Plenum Cable, CL3P, FPLP, CMP, FT6, 1000' (304.8m), REELEX Pull Box, Natural White
32061112|WG-32061112
Genesis
Genesis 32061112 22/6 Stranded Shielded Plenum Cable, CL3P, FPLP, CMP, FT6, 1000' (304.8m), REELEX Pull Box, Natural White
32061112 | WG-32061112
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This Genesis® cable features 6 stranded 22 AWG copper conductors, an overall foil shield with a drain wire, and a plenum rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
Main Features
- Stranded bare copper conductors
- Overall foil shield
- Rated for plenum, riser, and general purpose indoor installation

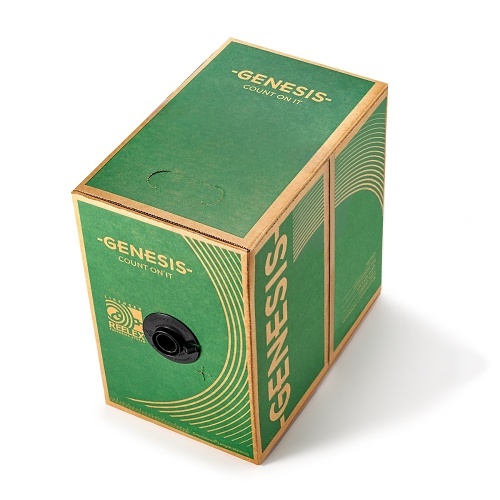

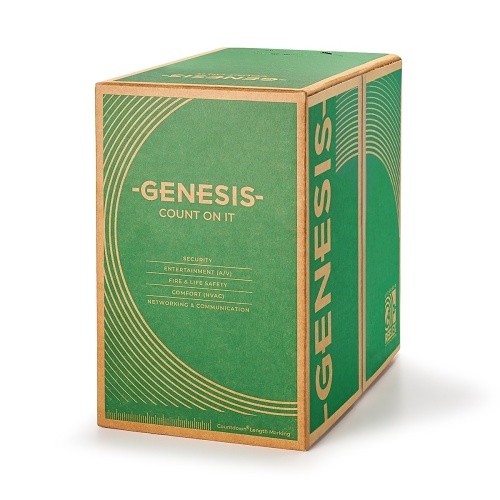

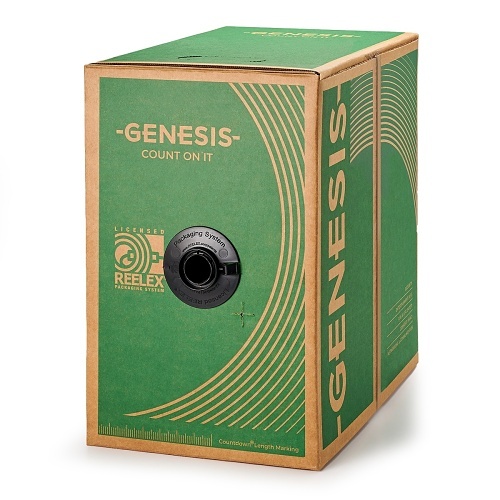

- 1000 ft. (304.8 m) REELEX pull box
- Natural (off-white) jacket
- Stranded feature for your convenience and ease of usage
- Control the compatible device with ease
General Information
Name: Genesis 32061112 22/6 Stranded Shielded Plenum Cable, CL3P, FPLP, CMP, FT6, 1000' (304.8m), REELEX Pull Box, Natural White
Category: Genesis, Wire & Cable, Security & Access Control Cables, Plenum Shielded Cables
UPC Code: 619172017831
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number WG-32061112 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 32061112 Packaged Quantity 1 Product Model 32061112 Product Name 32061112 Control Cable Product Type Access & Security Cable
American Wire Gauge 22AWG Cable Rating Plenum Cable Type Multi-conductor/Multi-pair Core/Cladding Diameter 22/6 Device Supported Burglar Alarm, Intercom, Phone, Speaker Jacket Type Riser Number of Conductors 6 Number of Pairs 3 Shielding Yes Solid or Stranded Stranded
Cable Length 1000' Color Natural Insulation Material LS-PVC Jacket Material LS PVC Material Bare Copper Package Type REELEX Pull Box
Limited Warranty 3 Year; 3-for-1
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
