Genesis 44025504 18/2 Solid Shielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red
44025504|WG-44025504
Genesis 44025504 18/2 Solid Shielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red
44025504|WG-44025504
Genesis
Genesis 44025504 18/2 Solid Shielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red
44025504 | WG-44025504
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 44025504 18/2 Solid Shielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Non-Plenum Shielded Cables
UPC Code: 619172019354
Country of Origin: US. Country of origin is subject to change.
Specifications
ADI Part Number WG-44025504 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 44025504 Packaged Quantity 1 Product Model 44025504 Product Name 44025504 Control Cable Product Type Fire Alarm Cable
American Wire Gauge 18AWG Cable Rating Riser Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 18/2 Device Supported Fire Alarm Jacket Material PVC Material Bare Copper Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Solid

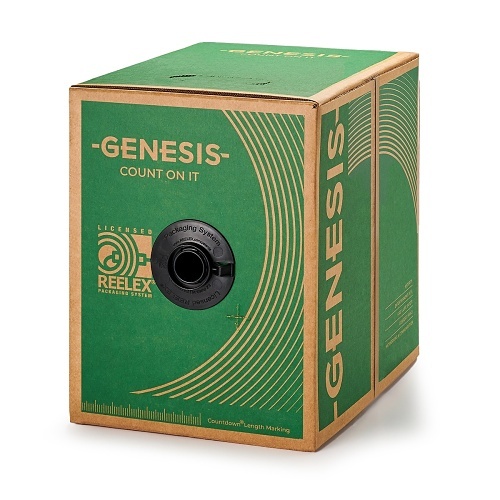

Cable Length 500' Color Red Insulation Material PP Package Type REELEX Pull Box
Limited Warranty 3 Year; 3-for-1
Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor TAA Compliant Yes
