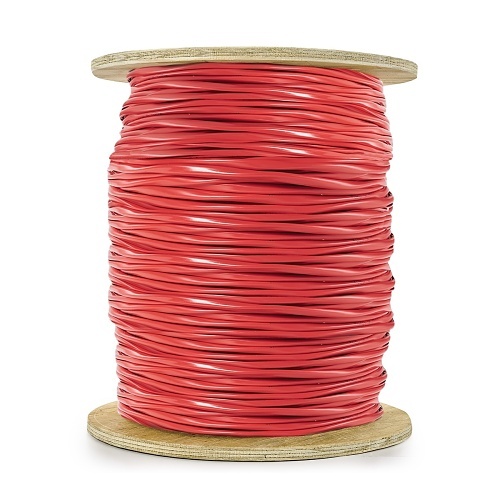

Genesis 46071004 16/4 Solid Shielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
46071004|WG-46071004
Genesis 46071004 16/4 Solid Shielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
46071004|WG-46071004
Genesis
Genesis 46071004 16/4 Solid Shielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
46071004 | WG-46071004
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 46071004 16/4 Solid Shielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Plenum Shielded Cables
UPC Code: 619172017091
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number WG-46071004 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 46071004 Packaged Quantity 1 Product Model 46071004 Product Name 46071004 - 16 AWG 4C Sol Shielded Plenum, Red, 1000 ft. Reel Product Type Fire Alarm Cable Weight 46.10 lb
American Wire Gauge 16AWG Cable Rating Plenum Cable Type FPLP Shielded Cables Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 16/4 Device Supported Fire Alarm Jacket Type Plenum Number of Conductors 4 Number of Pairs 2 Shielding Yes Solid or Stranded Solid
Cable Length 1000' Color Red Insulation Material LS-PVC Jacket Material LS PVC Material Bare Copper Package Type Reel
Limited Warranty 3-Year
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Indoor/Outdoor Indoor
