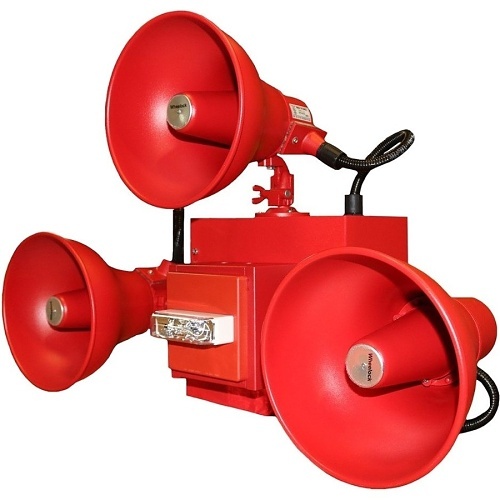

Eaton STH-3R24MCCH-NR Cluster Speaker Strobe, No Lettering, Clear Lens, STH 15 SR, RSS 24MCCH, Red
STH-3R24MCCH-NR|WH-103144
Eaton STH-3R24MCCH-NR Cluster Speaker Strobe, No Lettering, Clear Lens, STH 15 SR, RSS 24MCCH, Red
STH-3R24MCCH-NR|WH-103144
Eaton
Eaton STH-3R24MCCH-NR Cluster Speaker Strobe, No Lettering, Clear Lens, STH 15 SR, RSS 24MCCH, Red
STH-3R24MCCH-NR | WH-103144
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Wheelock STH cluster speaker with RSS multi-candela strobe is designed for indoor ceiling mounting in high ambient noise environments. It is available with 2, 3 or 4 speakers for wide area coverage. The cluster speaker strobe is supplied with STH-15SR (UL1480 Listed) horns and one RSS-24MCCH (UL1971 Listed) ceiling strobe mounted to a NEMA 1 steel enclosure. The strobe is synchronizable. The STH cluster speaker with MCCH strobe comes fully assembled.
Main Features
- STH-15SR Speakers are UL Standard 1480 Listed; RSS-24MCCH Strobes are UL Standard 1971 Listed
- Compliant with ADA, OSHA 1910.165, ANSI 117.1, NFPA 72, NFPA 101, and IFC
- Cluster and strobe wiring can be monitored for integrity by the control panel
- Cluster speaker strobes come fully assembled
- High-efficiency unit for fire life safety and/or general communication announcing/notification
- Provides for high-intelligibility voice reproduction and high-intensity visual alerting for emergency life safety applications, alarm and protective signaling
- Speakers and strobes are prefabricated to a 10" x 10" x 6" NEMA 1 steel enclosure for indoor use
- Mounts to ceiling
- Only 1 pair of wires needed for audio connections
- Strobes are connected to the NAC strobe circuit and are selectable 115 or 177 candela
General Information
Name: Eaton STH-3R24MCCH-NR Cluster Speaker Strobe, No Lettering, Clear Lens, STH 15 SR, RSS 24MCCH, Red
Category: Eaton, Fire, Fire Notification Appliances, Speaker Strobes
UPC Code: 786697031441
Country of Origin: United States. Country of origin is subject to change.
