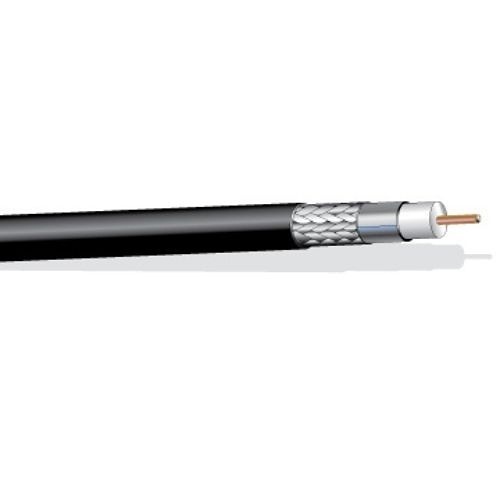

West Penn 6100EZWH1000 RG/6 18-1 Solid Copper Cable, PVC Jacket, 1000', White
6100EZWH1000|WP-6100EZWH
West Penn 6100EZWH1000 RG/6 18-1 Solid Copper Cable, PVC Jacket, 1000', White
6100EZWH1000|WP-6100EZWH
West Penn Wire
West Penn 6100EZWH1000 RG/6 18-1 Solid Copper Cable, PVC Jacket, 1000', White
6100EZWH1000 | WP-6100EZWH
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
6100 RG6/U CCS Type CATV Dual Shield CATV/MATV DBS Audio, Video, Communication Cable.
Main Features
- Number of Conductors; 1
- AWG Size; 18
- Conductor Stranding; Solid
- Conductor Type; Copper Covered Steel -CCS
- Nominal DCR; 28 Ohms / 1000'
- Insulation Type; Foam Polyethylene
- Insulation Thickness; 0.18"
- Shield Type; Overall 100% Aluminum Foil
- Shield Type 2; Aluminum Braid
- Jacket Type; PVC
General Information
Name: West Penn 6100EZWH1000 RG/6 18-1 Solid Copper Cable, PVC Jacket, 1000', White
Category: West Penn Wire, Wire & Cable, Coaxial Cables
UPC Code: 612825455660
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number WP-6100EZWH Brand Name West Penn Wire Manufacturer Part Number 6100EZWH1000
Shielding Braid, Dual
Jacket Material PE, PVC
