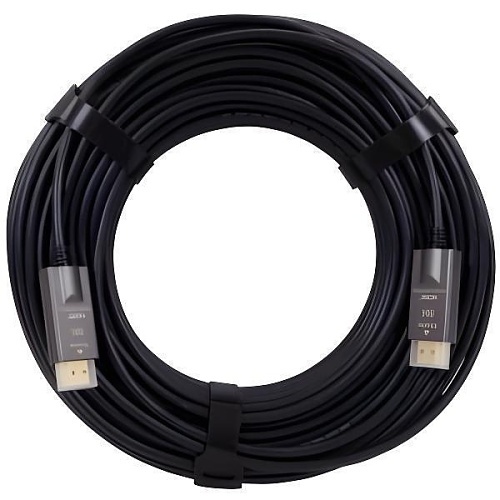

West Penn DR-H2.1-30M 8K Next Generation Digital Ribbon Cable, Male to Male, Plenum, 100'
West Penn DR-H2.1-30M 8K Next Generation Digital Ribbon Cable, Male to Male, Plenum, 100'
West Penn DR-H2.1-30M 8K Next Generation Digital Ribbon Cable, Male to Male, Plenum, 100'
DR-H2.1-30M | WP-DRH2130M
Please sign in to view pricing and availability and to add to cart.
Product Overview
Our 8K Next Generation Digital Ribbon cables utilize a proprietary technology to allow high-speed, high-definition, HDMI signal transmission over distances of up to 100'. The cable is fitted with a discreet black jacket that enables the cable to blend in after installation. The hybrid fiber / copper cables deliver a speed of 48 Gbps video bandwidth when directly connected, or 18 Gbps when 6' copper cables are added to ends. They can easily handle up to 8k 60 Hz 4-4-4 HDR uncompressed HDMI video and are ARC-compatible. These advanced technology cables use 4-glass fibers, 7-copper wires and supply the necessary power to the embedded circuitry at both ends of the cable. 8K Cables meet the HDMI and HDCP testing standards. The connector shells are labeled "source" and "display" to aid in proper connections. The cables come pre-terminated.
Main Features
- Supports a bandwidth of 48 Gbps
- Multi-format compatibility
- No external power or special tooling required
- Cable and connectors easily fit within a 1" conduit
- Plenum rated, Type CMP / FT6
- UL Listed
- Supports DDC for HDCP and EDID
- Supports PCM, Dolby, DTS-HD and True HD audio
- ARC Compatible
- Supports up to 6' standard copper HDMI extension cables for 4K 60 Hz in-the-wall applications
General Information
Specifications
ADI Part Number WP-DRH2130M Brand Name West Penn Wire Manufacturer Part Number DR-H2.1-30M Product Name 8K HDMI Long Length Assemblies Product Type Cable
Cable Rating Plenum
Cable Length 98.43'
