Image of WT-800FP
WattBox

WattBox WB-800-FP 800 Series Faceplate

WB-800-FP|WT-800FP
WattBox

WattBox WB-800-FP 800 Series Faceplate

WB-800-FP|WT-800FP

Sign In for Dealer Pricing

Become an ADI Customer
Image of WT-800FP
WattBox

WattBox WB-800-FP 800 Series Faceplate

WB-800-FP | WT-800FP

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

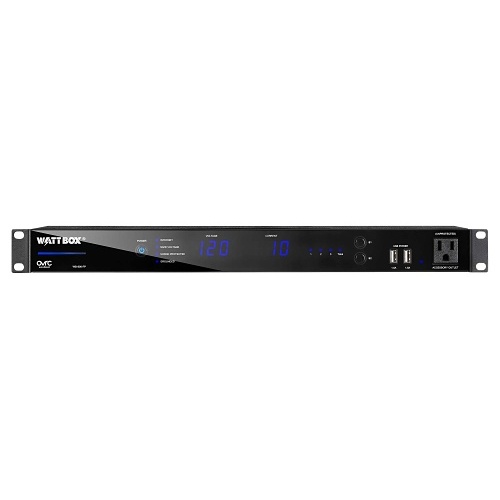

All of the information you need is at your fingertips with the WattBox 800 Series Faceplate. LED indicators show if your WattBox is connected to the internet, voltage and current readings (individual and global), and whether the unit is properly grounded. Two buttons (B1/B2) give you the option for local reset of each individual PDU or all PDUs attached, and an AC power button allows you to toggle the connected PDUs on or off. Connect up to three Power Distribution Units for control and monitoring and utilize OvrC to view which PDUs are connected to the faceplate. On the front of the faceplate, an individual outlet and two USB charging ports are conveniently accessible for charging tools or as a quick power resource for customers. On the back of the faceplate, two additional USB charging ports are available.

This WattBox® product has a Lifetime Limited Warranty. The warranty's applicable terms and conditions can be found here.

Main Features

  • Rack mountable modular faceplate for WattBox 800 and 820 Series power conditioners
  • LED Indicators for internet, voltage, and current status
  • Local reset buttons for individual or all PDUs
  • Connect up to three PDUs for control and monitoring
  • 1U rack-mountable form factor for easy integration
  • Front and back USB charging ports for convenience
  • Compatible with 800 Series and 820 Series IP WattBox Products
  • Real-time PDU wattage, amperage, and voltage monitoring
  • LED status indicators for easy reference and troubleshooting
  • AC power button to toggle connected PDUs on or off

General Information

Name: WattBox WB-800-FP 800 Series Faceplate
Category: WattBox, Batteries & Power Supplies, Power Conditioners, ADI Exclusive
UPC Code: 842822055468
Country of Origin: TW. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
