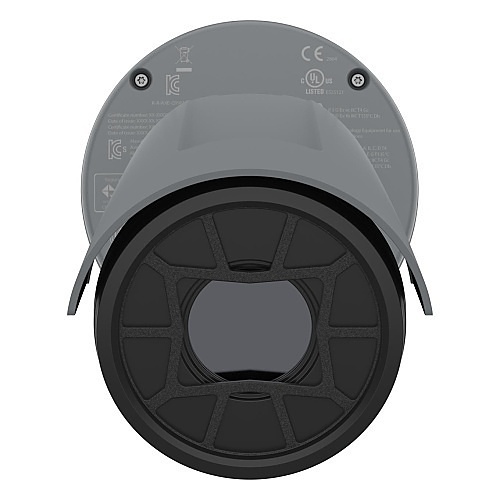

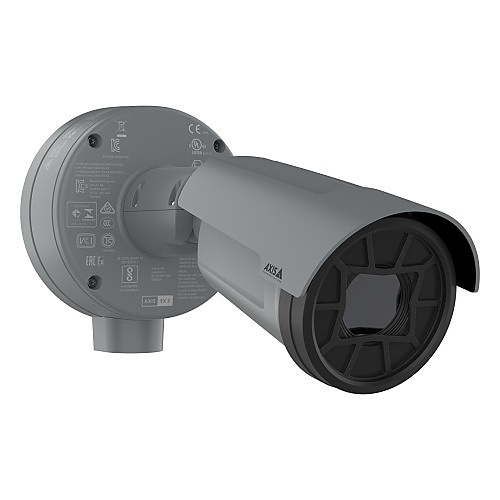

AXIS Q1961-XTE Explosion-Protected Thermal Camera, Class/Division-2 and Zone-2 Certified, Athermalized Lens
Q1961-XTE|Z4-02535001
AXIS Q1961-XTE Explosion-Protected Thermal Camera, Class/Division-2 and Zone-2 Certified, Athermalized Lens
Q1961-XTE|Z4-02535001
Axis Communications
AXIS Q1961-XTE Explosion-Protected Thermal Camera, Class/Division-2 and Zone-2 Certified, Athermalized Lens
Q1961-XTE | Z4-02535001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Designed and certified for Zone and Division 2 hazardous areas, this compact and lightweight explosion-protected camera can remotely monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F). You’ll receive a notification if the temperature exceeds or falls below a set threshold. It will also send a notification if the temperature increases or decreases too rapidly. It supports up to 10 configurable polygonal detection areas, and spot temperature reading shows the exact temperature in specific areas. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
Main Features
- Axis Edge Vault safeguards the device
- Built-in cybersecurity with Axis Edge Vault
- Configurable temperature monitoring areas
- Spot temperature reading
- Thermometric for remote temperature measuring
- Worldwide hazardous area certifications
- Wired connectivity technology offers maximum visual convenience
General Information
Name: AXIS Q1961-XTE Explosion-Protected Thermal Camera, Class/Division-2 and Zone-2 Certified, Athermalized Lens
Category: Axis Communications, Video Surveillance, IP Cameras, Thermal Imaging Cameras
UPC Code: 7331021079113
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number Z4-02535001 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 02535-001 Product Line Q Product Model Q1961-XTE Product Name AXIS Q1961-XTE 7 mm 30 fps Product Series Q19 Product Type Explosion-protected cameras; Thermal cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267 Weight 3.31lb
Aperture f/1.18 Connectivity Technology Wired Field of View Horizontal, Vertical Lens Type Fixed Maximum Aperture f/1 Maximum Frame Rate 30fps Video Formats H.264, MJPEG, MPEG-4
Image Sensor Size 384 x 288 Maximum Video Resolution 768 x 576
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -22°F (-30°C) Operating Humidity 1 Operating Temperature (T-T) -22-140°F
Network (RJ-45) Yes
Focal Length 7mm Lens Included Yes Maximum Thermal Focal Length 7.11mm
Memory Card Supported Yes
Remote Management Yes
Color Gray Durability Dust Resistant, Gas Resistant, Impact Resistant, Waterproof
Input Voltage 10V DC, 28V DC Maximum Power Consumption 13W Power over Ethernet (PoE) Yes
Storage Type Memory Card
Limited Warranty 5-Year
Certifications CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), NEMA 250 Type 4X Features Active Tampering Alarm, Alarm Detection, Alarm Triggering, Audio Detection, Motion Detection, Thermal Detection, Thermal Imaging, Video Content Analytics, Video Management System Impact Protection Rating IK10 Indoor/Outdoor Outdoor Ingress Protection Rating IP66, IP67 Package Contents - Q1961-XTE Explosion-Protected Thermal Camera
- Installation Guide
- TORX L-keys
- Terminal Block Connectors
- Connector Guard
- Cable Gaskets
- Owner Authentication Key
TAA Compliant Yes
