AXIS P3737-PLE x 5MP Multidirectional Panoramic Camera with Deep Learning, 3.2-8.1mm Varifocal Lens (Replaces P3719-PLE)
AXIS P3737-PLE x 5MP Multidirectional Panoramic Camera with Deep Learning, 3.2-8.1mm Varifocal Lens (Replaces P3719-PLE)
AXIS P3737-PLE x 5MP Multidirectional Panoramic Camera with Deep Learning, 3.2-8.1mm Varifocal Lens (Replaces P3719-PLE)
02634-001 | Z4-02634001
Please sign in to view pricing and availability and to add to cart.
Product Overview
This multidirectional camera offers four channels with 5 MP per channel to deliver excellent overviews and detailed coverage. It includes 360° IR illumination for clear, reflection-free footage and excellent image quality even in low light or complete darkness. This flexible camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. With highly efficient power consumption, it ensures lower operating costs. It also supports powerful analytics based on deep learning. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, guarantees the device’s integrity and protects it from unauthorized access.
Main Features

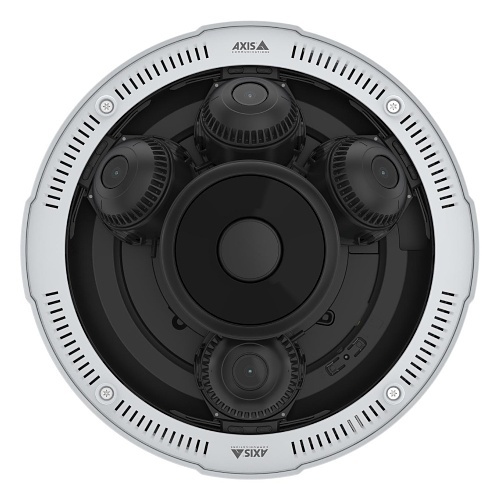

- 360° IR illumination with individually controlled LEDs
- 4x 5 MP at 20 fps per channel
- Axis Edge Vault safeguards the device

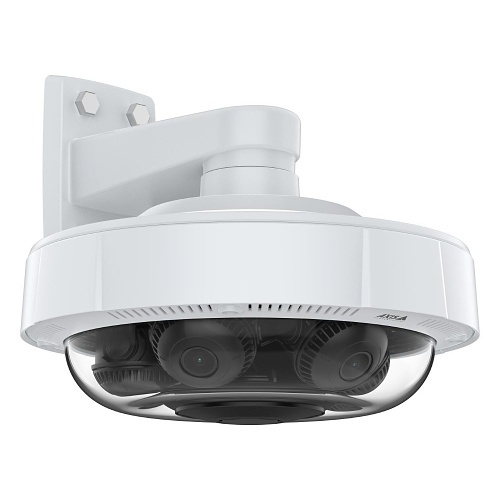

- Flexible mounting options
- Support for advanced analytics
General Information
Specifications
ADI Part Number Z4-02634001 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 02634-001 Product Line P Product Model P3737-PLE Product Name AXIS P3737-PLE Product Series P37 Product Type Fixed dome cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267 Weight 4.41lb
Aperture f/1.9-3.24 Connectivity Technology Wired Effective Camera Resolution 5MP Field of View Horizontal, Vertical Lens Type Varifocal Maximum Aperture F1.9-3.2 Maximum Frame Rate 30fps Minimum Focal Length 3.2mm Night Vision Yes Optical Zoom 2.5x Video Formats H.264, H.265, MJPEG, MPEG-4
Wide Dynamic Range Yes
Image Sensor Size 1/2.7" Maximum Video Resolution 2592 x 1944 Number of Sensors 4
Maximum Operating Temperature 50 deg C Minimum Operating Temperature -30 deg C Operating Humidity 1
Longest Shutter Speed 1.5 Second Minimum Illumination 0 lux Shortest Shutter Speed 1/28000 Second
Network (RJ-45) Yes
Focal Length 3.18-8.12mm Lens Included Yes Maximum Focal Length 8.10 mm Minimum Aperture f/3.2
Memory Card Supported Yes
Remote Management Yes
Color White Durability Dustproof, Impact Resistant, Tamper Resistant, Waterproof Form Factor Dome
Maximum Power Consumption 23W Power over Ethernet (PoE) Yes
Recording Formats 2K Storage Type Memory Card/Cloud
Limited Warranty 5-Year
Certifications CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), VDMA 24364 Environmentally Friendly Yes Features 360 deg IR illumination with individually controlled LEDs, 4 x 2 MP at 30 fps per channel, Axis Edge Vault safeguards the device, Flexible mounting options, Support for advanced analytics Impact Protection Rating IK09 Indoor/Outdoor Outdoor Ingress Protection Rating IP66, IP67 Package Contents - P3737-PLE Panoramic Camera
- installation guide
- connector guard
- cable gaskets
TAA Compliant Yes
