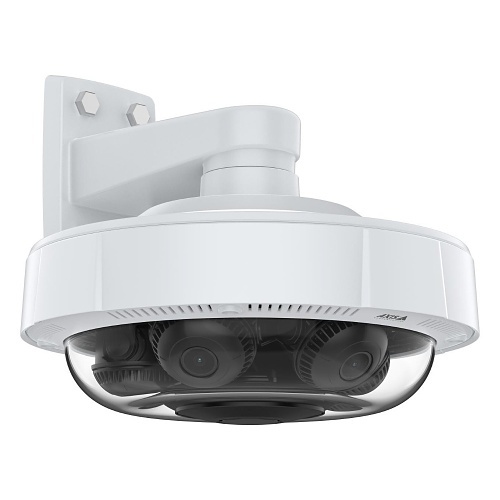

AXIS P3738-PLE Multidirectional Panoramic Camera
02635-001|Z4-02635001
AXIS P3738-PLE Multidirectional Panoramic Camera
02635-001|Z4-02635001
Axis Communications
AXIS P3738-PLE Multidirectional Panoramic Camera
02635-001 | Z4-02635001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This multidirectional camera offers four channels with 4K per channel to deliver excellent overviews and detailed coverage. It includes 360° IR illumination for clear, reflection-free footage and excellent image quality even in low light or complete darkness. This flexible camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. With highly efficient power consumption, it ensures lower operating costs. It also supports powerful analytics based on deep learning. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, guarantees the device’s integrity and protects it from unauthorized access.
Main Features
- 360° IR illumination with individually controlled LEDs
- 4x 4K at 15 fps per channel
- Axis Edge Vault safeguards the device
- Flexible mounting options
- Support for advanced analytics
- Provides night vision of objects at a distance of up to 49.21 ft
- 4K recording format for a lively video quality experience with maximum dependability
- Infrared night vision type consumes very little electrical power and provides evidentiary quality night-time surveillance video
- Fixed camera iris provides reliable output with improved quality to ensure maximum productivity
- Varifocal lens type to ensure maximum surveillance dependability and optimal performance
General Information
Name: AXIS P3738-PLE Multidirectional Panoramic Camera
Category: Axis Communications, Video Surveillance, IP Cameras, Panoramic Cameras, Edge Cameras
UPC Code: 7331021080645
Country of Origin: MX. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02635001 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 02635-001 Product Line P Product Model P3738-PLE Product Name AXIS P3738-PLE Product Series P37 Product Type Fixed dome cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267 Weight 4.41lb
Aperture f/1.9-3.2 Connectivity Technology Wired Effective Camera Resolution 8MP Field of View Horizontal, Vertical Lens Type Varifocal Maximum Aperture F1.9-3.2 Maximum Frame Rate 15fps Minimum Focal Length 3.2mm Night Vision Yes Night Vision Type Infrared Optical Zoom 2.5x Video Formats H.264, H.265, MJPEG, MPEG-4
Night Vision Distance 49.21 ft Wide Dynamic Range Yes
Image Sensor Size 1/2.8" Maximum Illumination 0 lux Maximum Video Resolution 3840 x 2160 Number of Sensors 4
Maximum Operating Temperature 50 deg C Minimum Operating Temperature -30 deg C Operating Humidity 1
Longest Shutter Speed 2 Second Minimum Illumination 0 lux Shortest Shutter Speed 1/16000 Second
Network (RJ-45) Yes
Focal Length 3.18-8.12mm Lens Included Yes Maximum Focal Length 8.10 mm Minimum Aperture f/3.2
Memory Card Supported Yes
Remote Management Yes
Color White Durability Dustproof, Impact Resistant, Waterproof Form Factor Dome Height 3.6"
Maximum Power Consumption 26W Power over Ethernet (PoE) Yes
Diameter 10" Mount Type Bracket Mount, Conduit Mount, Junction Box Mount
Recording Formats 4K Storage Type Memory Card/Cloud
Certifications CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), VDMA 24364 Features 360 deg IR illumination with individually controlled LEDs, 4 x 4 K at 15 fps per channel, Axis Edge Vault safeguards the device, Flexible mounting options, Support for advanced analytics Impact Protection Rating IK09 Indoor/Outdoor Outdoor Ingress Protection Rating IP66, IP67 TAA Compliant Yes
