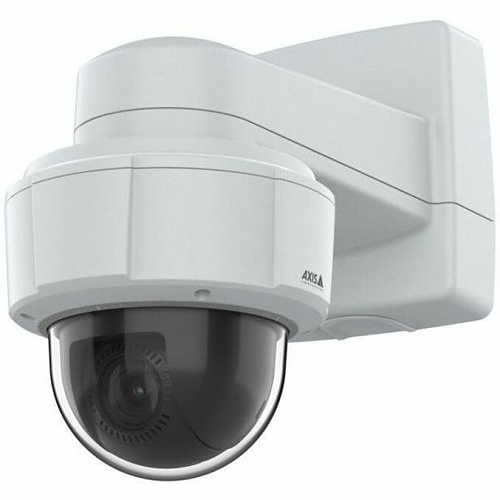

AXIS M5526-E 4MP Indoor Outdoor PTZ Camera with 10x Zoom and Focus Recall
AXIS M5526-E 4MP Indoor Outdoor PTZ Camera with 10x Zoom and Focus Recall
AXIS M5526-E 4MP Indoor Outdoor PTZ Camera with 10x Zoom and Focus Recall
02769-001 | Z4-02769001
Please sign in to view pricing and availability and to add to cart.
Product Overview
This affordably priced camera delivers great image quality in 4 MP with 10x optical zoom. It offers continuous 360° pan and autofocus ensures detailed, sharp images – every time. Compatible with all Axis PTZ mounts, it can be mounted both in- and outdoors. Built on ARTPEC-8, it includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. And AXIS Object Analytics can detect and classify humans, vehicles, and types of vehicles. Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
Main Features
- 4 MP and 10x optical zoom
- Compact design
- Continuous 360° pan
- PoE or 24 V with audio and I/O connectivity
- Support for analytics with deep learning
General Information
Specifications
ADI Part Number Z4-02769001 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 02769-001 Product Line M Product Model M5526-E Product Name AXIS M5526-E 60 Hz Product Series M55 Product Type PTZ cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267 Weight 2.20lb
Aperture f/1.6-3.0 Connectivity Technology Wired Effective Camera Resolution 4MP Field of View Horizontal, Vertical Lens Type Varifocal Maximum Aperture f/1.6 Maximum Frame Rate 60fps Minimum Focal Length 4.7mm Night Vision Yes Night Vision Type Infrared (IR) Optical Zoom 10x Video Formats H.264, H.265, MJPEG, MPEG-4 Video Resolution Yes
Wide Dynamic Range Yes
Image Sensor Size 1/3" Maximum Video Resolution 2688 x 1512
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -4°F (-20°C) Operating Humidity 1
Longest Shutter Speed 0.2 Second Minimum Illumination 0.01 lux Shortest Shutter Speed 1/27000 Second
Network (RJ-45) Yes
Focal Length 4.7-47mm Lens Included Yes Maximum Focal Length 47 mm Minimum Aperture f/3
Remote Management Yes
Color White Durability Dustproof, Impact Resistant, Waterproof Form Factor Dome Height 5.91" Package Type Box
Input Voltage 20V DC, 28V DC Maximum Power Consumption 12W Power over Ethernet (PoE) Yes
Diameter 6.5" Mount Type Recessed Mount
Storage Type Memory Card
Limited Warranty 5-Year
Certifications CISPR 32 Class A, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification EU RoHS, REACH Environmentally Friendly Yes Features Day/Night, HTTPS Encryption, Human Detection, Motion Detection, Password Protection, Privacy Masking, Vehicle Detection, White Balance, Wide Dynamic Range Impact Protection Rating IK09 Indoor/Outdoor Outdoor Ingress Protection Rating IP66 Package Contents - 1 x M5526-E PTZ Camera Indoor and outdoor 4 MP with 10x zoom and focus recall
- 1 x Installation Guide
- 1 x Bayonet Adapter
- 1 x Terminal Bloc
