AXIS 02858-001 HDTV 1080p Mk II Modular Pinhole IP Camera, 91° Field of View, 3.7mm Lens
P1265 Mk II | Z4-02858001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

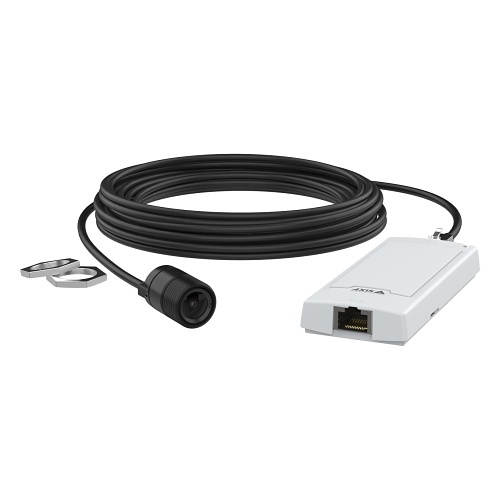

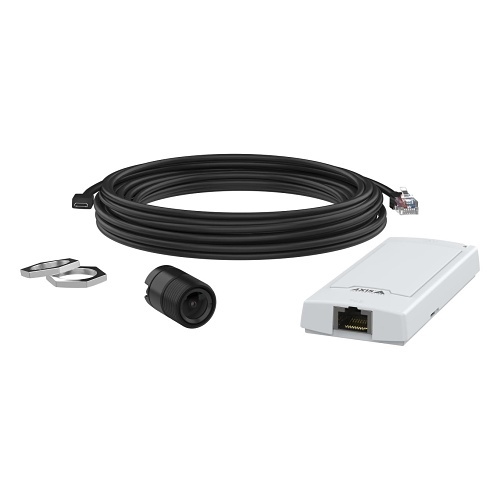

Based on the modular concept, AXIS P1265 Mk II features a tiny, pinhole-sized sensor unit that connects via cable to the main unit, so the two parts can be placed separately from each other. This pinhole sensor unit offers extremely discreet installation. Ideal for a wide range of indoor applications, it’s easy to install in tight spaces, for instance, ATMs and ticketing machines. The sensor can be mounted up to 15 m from the main unit and a detachable cable ensures flexible installation and upgrade. Additionally, a deep learning processing unit enables the use of advanced analytics.
Main Features
- AXIS Object Analytics preinstalled
- Detachable cable up to 15 m
- HDTV 1080p with 91° field of view
- Support for advanced analytics
- Tiny, pinhole-sized sensor unit
General Information
Name: AXIS 02858-001 HDTV 1080p Mk II Modular Pinhole IP Camera, 91° Field of View, 3.7mm Lens
Category: Axis Communications, Video Surveillance, IP Cameras, Covert Cameras
UPC Code: 7331021085435
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number Z4-02858001 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 02858-001 Product Model P1265 Mk II Product Name AXIS P1265 Mk II Product Series P12 Product Type Fixed cameras Weight 2.65 oz
Connectivity Technology Wired Field of View Horizontal, Vertical Lens Mount Type M12 Lens Type Fixed Material Plastic, Steel Maximum Aperture f/2.5 Maximum Frame Rate 30 fps Minimum Focal Length 3.7 mm Video Formats H.264, H.264B (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.265, H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG, Zipstream
Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -4°F (-20°C) Operating Humidity 85%
Longest Shutter Speed 1/5 Second Minimum Illumination 0.2 lux Shortest Shutter Speed 1/16500 Second
Network (RJ-45) Yes
Focal Length 3.7mm Lens Included Yes Maximum Focal Length 3.70 mm
Remote Management Yes
ADI Part Number Replaces Z4-0927001 Model Number Replaces 0927-001,P1265
Recording Formats Full HD Storage Type Memory Card
Certifications CISPR 32 Class A, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES(A)/NMB(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3X Features AI Analytics, HTTPS Encryption, Human Detection, Mirror, Motion Detection, Password Protection, Privacy Masking, SD Card Local Storage, Vehicle Detection, White Balance, Wide Dynamic Range Indoor/Outdoor Indoor, Outdoor Ingress Protection Rating IP3X TAA Compliant Yes
