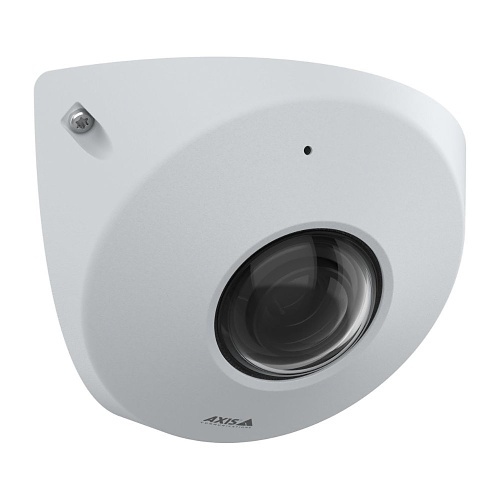

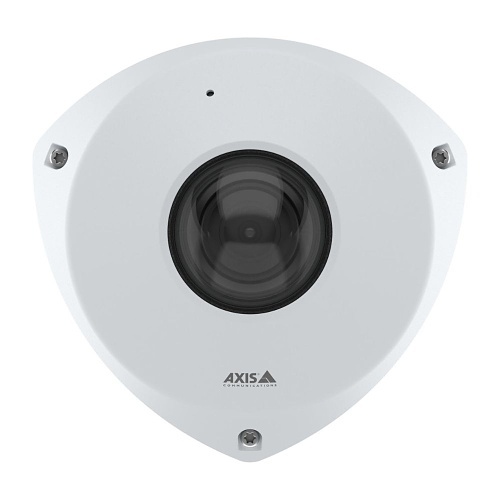

AXIS P9117-PV 6MP Corner Camera with No-Blind Spots
AXIS P9117-PV 6MP Corner Camera with No-Blind Spots
AXIS P9117-PV 6MP Corner Camera with No-Blind Spots
02864-001 | Z4-02864001
Please sign in to view pricing and availability and to add to cart.
Product Overview
AXIS P9117-PV delivers 360° panoramic view with no blind spots. This 6 MP corner-mounted camera includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. AXIS TP9801 Cover Steel is also available as an accessory. Featuring a deep learning processing unit, it’s possible to run powerful analytics on the edge. For instance, AXIS Object Analytics can detect and classify different objects of interest. With a built-in microphone, it’s out-of-the-box-ready for AXIS Audio Analytics. Furthermore, Axis edge vault, a hardware-based cybersecurity platform, safeguards the device.
Main Features
- 6 MP with stereographic lens
- Built-in cybersecurity with Axis edge vault
- Built-in microphone and Axis Audio Analytics
- Full coverage and no blind spots
- Vandal-resistant (IK10) and IP66-rated dust protection
General Information
Specifications
ADI Part Number Z4-02864001 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 02864-001 Product Line P Product Model P9117-PV Product Name AXIS P9117-PV Product Series P91 Product Type Fixed dome cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267 Weight 1.68 lb
Aperture f/2.2 Built-in Microphone Yes Connectivity Technology Wired Effective Camera Resolution 6MP Field of View Horizontal, Vertical Lens Type Fixed Maximum Aperture f/2.2 Maximum Frame Rate 60fps Minimum Focal Length 1.1mm Night Vision Yes Night Vision Type Infrared (IR) Video Formats H.264, H.265, MJPEG, MPEG-4 Video Resolution Yes
Image Sensor Size 1/1.8" Maximum Video Resolution 2160 x 2160
Maximum Operating Temperature 131°F (55°C) Minimum Operating Temperature 5°F (-15°C) Operating Humidity 0.85
Longest Shutter Speed 1/5 Second Minimum Illumination 0.04 lux Shortest Shutter Speed 1/33500 Second
Network (RJ-45) Yes
Focal Length 1.1mm Lens Included Yes Maximum Focal Length 1.10 mm
Memory Card Supported Yes
Remote Management Yes
Color White Depth 4.8" Durability Vandal Resistant Form Factor Dome Height 3.6" Package Type Box Width 5.7"
Maximum Power Consumption 5W Power over Ethernet (PoE) Yes
Mount Type Ceiling Mount, Corner Mount, Wall Mount
Storage Type Memory Card
Limited Warranty 5 Year
Certifications EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 60721-3-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP66, IEC/EN 62262 IK10 Environmentally Friendly Yes Features 3D Noise Reduction, Day/Night, HTTPS Encryption, Noise Reduction, Password Protection, Privacy Masking, PTZ, White Balance, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Indoor Ingress Protection Rating IP66 Package Contents Camera, Extra cable gasket, Extra screw gaskets, Installation guide, Owner authentication key, RJ45 tool mounting TAA Compliant Yes
