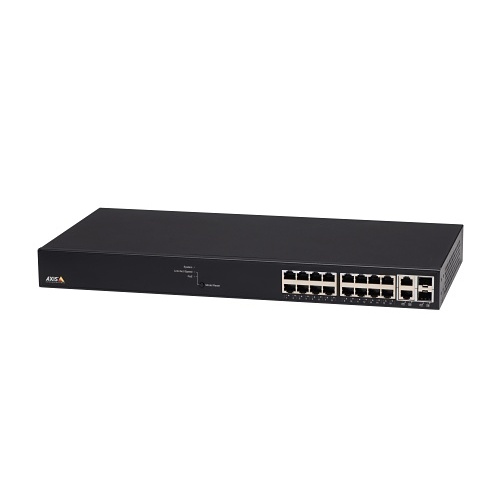

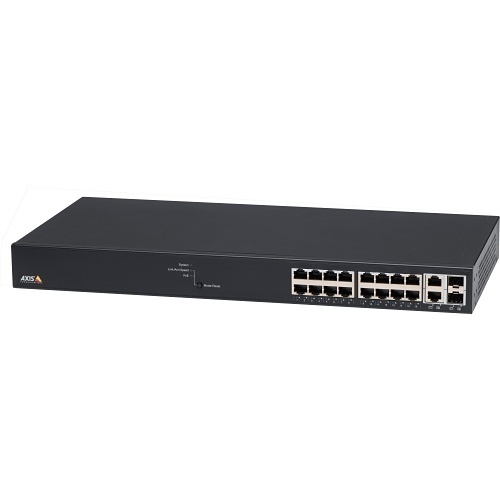

AXIS T8516 T85 Series 16-Port PoE+ Network Switch, Black
T8516|Z4-5801694
AXIS T8516 T85 Series 16-Port PoE+ Network Switch, Black
T8516|Z4-5801694
Axis Communications
AXIS T8516 T85 Series 16-Port PoE+ Network Switch, Black
T8516 | Z4-5801694
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
AXIS T8516 PoE+ Network Switch is an easy to install 16-port managed Gigabit switch - a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. AXIS T8516 comes with an integrated DHCP server for automatic assignment of IP addresses and discovery of connected Axis devices. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 16 PoE cameras.
Main Features
- 2 SFP/RJ45 Combination Ports
- 30 W PoE per port, total 240 W
- Gigabit switch
- Intuitive graphic topology for system overview
General Information
Name: AXIS T8516 T85 Series 16-Port PoE+ Network Switch, Black
Category: Axis Communications, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 7331021055308
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number Z4-5801694 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 5801-694 Product Line T Product Model T8516 Product Name AXIS T8516 POE+ NETWORK SWITCH US Product Series T85 Product Type Network Switches Weight 6.61 lb
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 30W
Operating Temperature (T-T) 32-122°F
Expansion Slot Type SFP Number of SFP Slots 2 Number of SFP+ Slots 2 Number of Total Expansion Slots 2 Shared SFP Slot Yes
Certifications EN 55024, EN 55032 Class A, EN 55035, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Modular Yes Total Number of Network Ports 16 Uplink Port No
Manageable Yes Security Features IEC/EN 60950-1|IEC/EN 62368-1|S-Mark|UL 60950-1
Network Technology 10/100/1000Base-T, 1000Base-X
Ethernet Technology Gigabit Ethernet Layer Supported 2
Color Black Depth 8.3" Form Factor Desktop Mount, Rack Mount Height 1.7" Material Metal Width 17.4"
Frequency 50 Hz, 60 Hz Input Voltage 100-240V AC Maximum Power Consumption 45W PoE Budget 30W Power Source Power Supply
Limited Warranty 3-Year
Country of Origin TW Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents - T8516 PoE+ Network Switch
- Installation Guide
- Power Cord
- 19" Ear Rack Kit
- 4 x Rubber feet
- 2 x SFP dust cover
