Vanco EVSP8K22 8K HDMI 2x2 Switching Splitter, Black
Vanco EVSP8K22 8K HDMI 2x2 Switching Splitter, Black
Vanco EVSP8K22 8K HDMI 2x2 Switching Splitter, Black
EVSP8K22 | ZX-EVSP8K22
Please sign in to view pricing and availability and to add to cart.
Product Overview

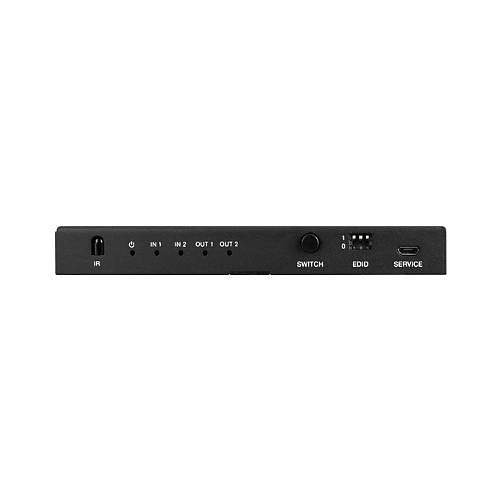

The Evolution by Vanco EVSP8K22 HDMI Splitter with 8K HDR pass-through, splits one source at a time to two displays. With two HDMI inputs, two 8K sources can be switched and split at the same time. Supports video resolutions up to 8K@60Hz and 4K at120 Hz over 4 channels of 10Gbps FRL for 40Gbps bandwidth. Features advanced EDID management and automatically adjusts for EQ based on the HDMI cables connected. Includes an IR remote for control with the option of front panel switching. Able to be used either as a splitter or a switcher, and is a great solution for gaming, video conferencing, education, and more!
Main Features

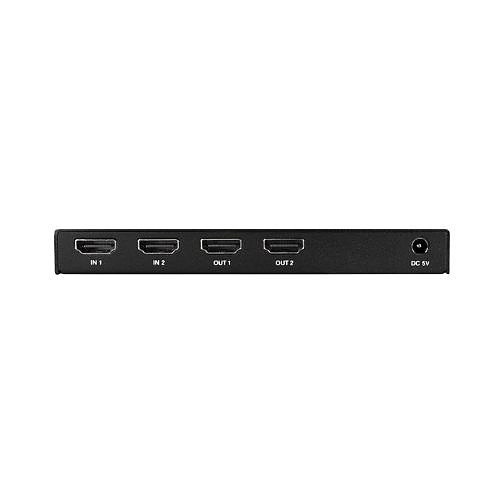

- Transmits audio and video from one of 2 HDMI inputs to 2 HDMI outputs
- Up to 8K resolution
- Supports HDR, HDR10, HDR10+, Dolbsy Vision, HLG pass through
- VRR, FVA, ALLM supported
- HDMI 2.1 and HDCP 2.3 compliant
- 40Gbps video bandwidth
- HDMI audio formats include LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS
- Built-in Equalizer with advanced manual EDID management
General Information
Specifications
ADI Part Number ZX-EVSP8K22 Brand Name Vanco Manufacturer Part Number EVSP8K22 Weight 0.6lb
Color Black Height 0.63" Width 2.63"
Length 5.75"
