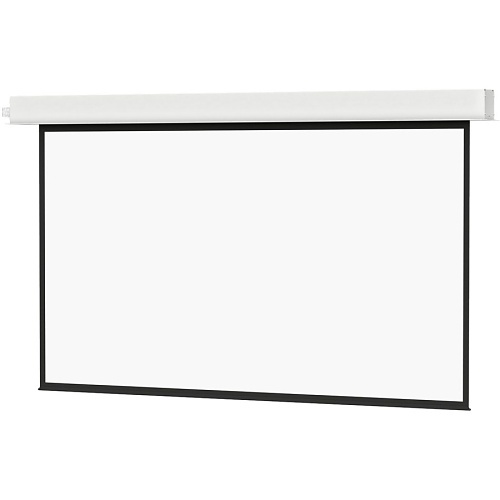

Da-Lite 34521LS Advantage Projection Screen with Plenum-Rated Case and Trim, 130"

Da-Lite 34521LS Advantage Projection Screen with Plenum-Rated Case and Trim, 130"

Da-Lite 34521LS Advantage Projection Screen with Plenum-Rated Case and Trim, 130"
34521LS | HI-34521LS
Please sign in to view pricing and availability and to add to cart.
Product Overview
The Advantage ceiling-recessed electric screen series is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the large format screen is installed. Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Sliding installation brackets allow mounting flexibility for easy attachment of the large format screen housing to the structure above the drop ceiling. Da-Lite’s new cable drop feature, SightLine, available with the tried-and-true Advantage (up to 184in Diagonal in 16:9 and up to 189in Diagonal in 16:10) electric screen, gives the impression of a floating screen. A suspension system in its single roller design features 3 or 4 thin cables eliminating the need for black drop – the black border above the projection screen. While the market is accustomed to specifying drop distance upon ordering, now vertical placement of the screen can be variable as the cables accommodate a range of drop distances up to 70in between the ceiling and the top of the screen, making ordering a snap. What’s more, this feature creates usable space above the viewing area to preserve architectural interests and provides the opportunity for camera/speaker placement. Enhanced aesthetics, painless ordering, smooth installation and future-proofing for height adjustability – this is the fine line between status quo and jaw drop.
Main Features
- Standard Silent Drive System to keep your screen whisper quiet (sizes up to 10'x10')
- Standard Low Voltage Control (LVC) to keep your screen operation flexible
- Simple Installation with a new installation kit and user-friendly packaging to keep you on schedule
- Support includes a comprehensive five-year warranty to keep you confident in your purchase
- UL Plenum rated case
- White powder-coated case for a clean aesthetic
- Available with SCB-100 and SCB-200 (RS-232 serial control board) or Video Projector Interface (screen trigger) built into the case
- Decora-style, three-button wall switch
- Standard black backing retains projected brightness
- Seamless surfaces in all models
General Information
Specifications
ADI Part Number HI-34521LS Brand Name Da-Lite by Legrand Manufacturer Legrand Group Manufacturer Part Number 34521LS Product Line Advantage Electrol Product Name Advantage Electrol Projection Screen Product Type Projection Screen
Diagonal Image Size 130" Screen Folding Mechanism Electric
Aspect Ratio 16:10
Color Black, White Dimensions 128 x 13 x 10" Height 68.9" Width 109.8"
Mount Type Ceiling Mount
Limited Warranty 5-Year
Certifications TAA Environmental Certification GREENGUARD, GREENGUARD Gold Environmentally Friendly Yes Package Contents - Advantage Electrol Projection Screen
- Installation kit
- Three-button wall switch
TAA Compliant Yes
