Digital Watchdog DW-BJRR2P80TLX Video Surveillance Server
Digital Watchdog DW-BJRR2P80TLX Video Surveillance Server
Digital Watchdog DW-BJRR2P80TLX Video Surveillance Server
DW-BJRR2P80TLX | 6K-RR2P80TLX
Please sign in to view pricing and availability and to add to cart.
Product Overview

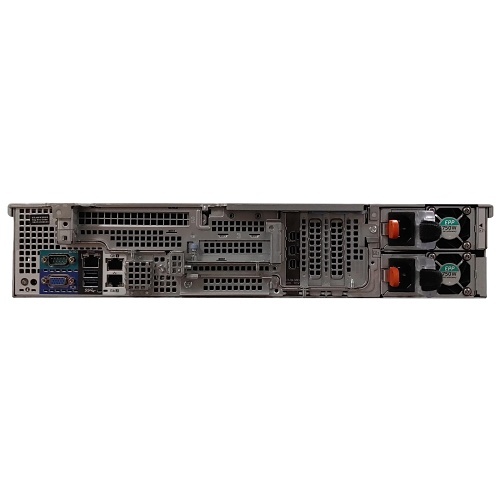

This dual-processor Blackjack Rack server is the ultimate solution for recording multiple IP cameras of any resolution at up to 600Mbps throughput. The UL listed server includes Windows 10, Windows Server 2019 or Linux Ubuntu OS on a separate 240GB NVMe SSD. The 2U rack-mountable hardware features dual Intel Xeon processors, 32GB memory, dual network cards, dual power supply, mini DisplayPort outputs and removable hot-swappable drives. The Blackjack Rack server comes preloaded with DW Spectrum IPVMS and eight recording licenses, up to 240TB raw internal storage with RAID5 and is ONVIF conformant.
Main Features
- Supports all ONVIF conformant IP cameras
- Storage options 80-240TB raw internal storage
- Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
- Hot Swappable HDDs
- OS RAID 1, Data RAID5, RAID6 Options
- Redundant power supply
- Dedicated GPU for client application for easy configuration
- Dual Intel Xeon processor
- 2x 1G, 4 x 1G Ethernet ports
- Windows 10, Ubuntu Linux, Windows Server OS on
General Information
Specifications
ADI Part Number 6K-RR2P80TLX Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DW-BJRR2P80TLX Product Line Blackjack Product Model DW-BJRR2P80TLX Product Name Digital Watchdog DW-BJRR2P80TLX 32GB Dual Intel Xeon Silver Processor 2U Rackmount Server, 80TB Storage Product Series Rack P Product Type Digital Video Recorder Weight 66 lb
Bluetooth No Video Formats H.264, MJPEG
Recording Modes Continuous, Motion Detection, Motion Plus Low Res, Motion Plus Object, Object Only
HDMI No Number of USB Ports 1
Ethernet Yes Ethernet Technology 1 Gigabit Ethernet
Color Black Depth 28.4" Height 3.41" Width 18.97"
Hard Drive Capacity 80TB
Limited Warranty 5-Year
ADI Cloud Storage Eligible Yes Country of Origin US Environmental Certification UL Environmentally Friendly Yes Operating System Compatibility Linux Package Contents Keyboard, Mouse
