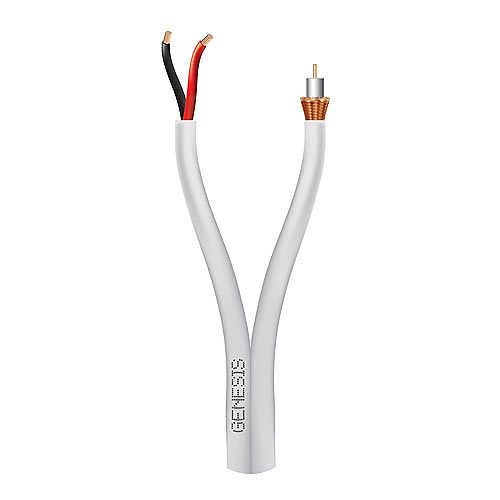

Genesis 65086101 RG59 BC 75 Ohm Coaxial with CCA Braid + 18/2 Stranded Unshielded Cable, General Purpose, CM, 500' (152.4 m) Reel-in-a-Box, White
65086101|WG-65086101
Color: White
Cable Length: 500'
Package Type: Reel-in-a-Box
Genesis 65086101 RG59 BC 75 Ohm Coaxial with CCA Braid + 18/2 Stranded Unshielded Cable, General Purpose, CM, 500' (152.4 m) Reel-in-a-Box, White
65086101|WG-65086101
Color: White
Cable Length: 500'
Package Type: Reel-in-a-Box
Genesis
Genesis 65086101 RG59 BC 75 Ohm Coaxial with CCA Braid + 18/2 Stranded Unshielded Cable, General Purpose, CM, 500' (152.4 m) Reel-in-a-Box, White
65086101 | WG-65086101
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Baseband CCTV Coaxial Cables ensure continuous video connectivity for analog video surveillance systems. Bare copper center conductors minimize voltage drop to preserve excellent video quality.
Main Features
- Solid Bare Copper center conductor for excellent conductivity and low voltage drop
- Polyethylene insulation
- 95% coverage braid shield
- PVC jacket
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 150 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 65086101 RG59 BC 75 Ohm Coaxial with CCA Braid + 18/2 Stranded Unshielded Cable, General Purpose, CM, 500' (152.4 m) Reel-in-a-Box, White
Category: Genesis, Wire & Cable, Coaxial Cables
UPC Code: 619172093989
Country of Origin: CN. Country of origin is subject to change.
Specifications
ADI Part Number WG-65086101 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 65086101 Packaged Quantity 1 Product Model 65086101 Product Name Coaxial Video Cable Product Type Coaxial Cable Weight 25 lb
American Wire Gauge 20AWG|18AWG Cable Rating General Purpose Cable Type RG-59 + Power Device Supported Security Device Impedance 75 ohms Jacket Material PVC Material Bare Copper Number of Conductors 1|2 Shielding Yes Solid or Stranded Solid|Stranded
Cable Length 500' Color White Insulation Material HDPE, PP Package Type Reel-in-a-Box
Limited Warranty 3-Year
Environmental Certification RoHS Features Stranded Indoor/Outdoor Indoor TAA Compliant No
