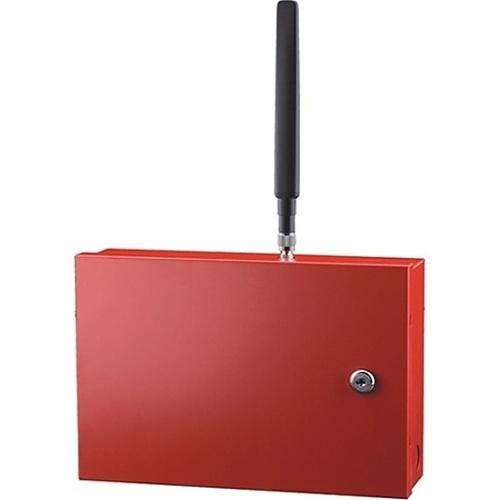

Telguard TG-7FS Universal 5G LTE-M Primary/Backup Commercial Fire Cellular Alarm Communicator, Verizon
TG-7FS-V|AD-TG7FSV
Compatibility: Verizon
Telguard TG-7FS Universal 5G LTE-M Primary/Backup Commercial Fire Cellular Alarm Communicator, Verizon
TG-7FS-V|AD-TG7FSV
Compatibility: Verizon
Telguard
Telguard TG-7FS Universal 5G LTE-M Primary/Backup Commercial Fire Cellular Alarm Communicator, Verizon
TG-7FS-V | AD-TG7FSV
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Telguard TG-7FS Universal 5G LTE-M Commercial Fire Cellular Alarm Communicator can work as a primary or backup solution in commercial fire applications.The TG-7FS(designed for Verizon) meets all UL Standards for Commercial Fire systems as either a backup pathway to a phone connection, or Sole Path, replacing all other connections. The TG-7FS transmits full data from intrusion and fire systems to central stations using the nationwide Verizon cellular network in the US. Pair with the TG-PEM accessory for DACTless connection to any panel.
Main Features
- Certified for use on the Verizon 5G LTE-M network for nationwide coverage in the US
- Serves as either primary or backup alarm communicator (can monitor existing phone line)
- Powers directly from the fire panel's 12V/24V auxiliary power supply or via plug-in transformer (included)
- Supports virtually all alarm formats using dial capture for universal panel compatibility: Contact ID, SIA, Radionics Modem formats, Pulse 4x2/3x1, DMP, Sonitrol, etc.
- Interfaces with panel over a single DACT connection for universal compatibility (use TG-PEM accessory when panel has no DACT)
- Compatible with the TG-PEM for DACT-less connectivity to the panel (Fire Alarm, Trouble, and Supervisory panel outputs)
- Link Supervision available in 60- and 5-minut frequencies to meet any AHJ requirements for Sole Path connectivity
- 2-Supervisory outputs and 1-Trip input available
- 2 supervisory outputs and 1 trip input available
- Made in USA
General Information
Name: Telguard TG-7FS Universal 5G LTE-M Primary/Backup Commercial Fire Cellular Alarm Communicator, Verizon
Category: Telguard, Fire, Pro AV, Fire Control Panels, Commercial Connector Cables, Alarm Communicators, Pro HDMI Cables
UPC Code: 702054304294
Country of Origin: US. Country of origin is subject to change.
Specifications
ADI Part Number AD-TG7FSV Brand Name Telguard Manufacturer Telular Corporation Manufacturer Part Number TG-7FS-V Product Line Telguard Commercial Fire Product Model TG-7FS-V Product Name TG-7FS-V 5G LTE-M Universal Commercial Fire Alarm Communicator, Verizon Product Series TG-7 Fire Product Type Fire Alarm Control/Communicator
Cellular Generation 5G LTE-M Connectivity Technology Wireless Power Consumption 110mA, 18mA
Communication Technology GSM
Color Red Depth 3.5" Height 7.5" Width 11.5"
Input Voltage 12V AC, 24V AC
Certifications & Standards , Control units & accessories for fire alarm systemsCommercial Burglary, 864, Commercial Fire, 365, 985, UL Listings, Central station burglar alarm unitsResidential, Household burglar alarm systems, Household fire warning systems1023, Police Station connected burglar alarm units and systems1610 Compatibility Verizon Features Battery Backup Package Contents TG-7FS-V 5G LTE-M Universal Commercial Fire Alarm Communicator, Verizon AC Adapter with Backup Battery
