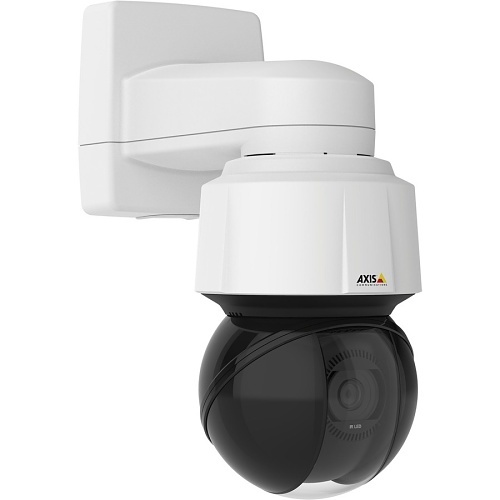

AXIS Q6135-LE Q61 Series 1080p HDTV PTZ IR IP Camera, 32x Optical Zoom, White (Replaces Q6115-E)
AXIS Q6135-LE Q61 Series 1080p HDTV PTZ IR IP Camera, 32x Optical Zoom, White (Replaces Q6115-E)
AXIS Q6135-LE Q61 Series 1080p HDTV PTZ IR IP Camera, 32x Optical Zoom, White (Replaces Q6115-E)
01959-004 | Z4-01959004
Please sign in to view pricing and availability and to add to cart.
Product Overview
AXIS Q6135-LE offers HDTV 1080p with 32x optical zoom. It features OptimizedIR up to 250 m (820 ft) or more depending on the scene and Lightfinder 2.0 for clear, sharp images even in challenging light. Sharpdome technology allows you to see 20° above the horizon with the same sharp image quality as below. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. It includes enhanced security features such as signed firmware, secure boot and TPM module. Plus, Axis Zipstream with support for H.264 and H.265.
Main Features
- Autotracking 2 and orientation aid
- HDTV 1080p with 32x optical zoom
- Lightfinder 2.0
- OptimizedIR (250 m/820 ft range)
- TPM, FIPS 140-2 level 2 certified
General Information
Specifications
ADI Part Number Z4-01959004 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 01959-004 NDAA Compliant Yes Product Line Q Product Model Q6135-LE Product Name AXIS Q6135-LE 60HZ US Product Series Q61 Product Type PTZ cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267 Weight 6.61lb
Aperture f/1.4-4.0 Connectivity Technology Wired Effective Camera Resolution 2MP Field of View Horizontal, Vertical Lens Type Varifocal Maximum Aperture f/1.4 Maximum Frame Rate 60fps Minimum Focal Length 4.3mm Night Vision Yes Night Vision Type Infrared Optical Zoom 32x Video Formats H.264, H.265, MJPEG
Night Vision Distance 820.21 ft Wide Dynamic Range Yes
Image Sensor Size 1/2.8" Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -58°F (-50°C) Operating Humidity 1
Longest Shutter Speed 2 Second Minimum Illumination 0.008 lux Shortest Shutter Speed 1/66500 Second
Network (RJ-45) Yes
Focal Length 4.3-137.6mm Lens Included Yes Maximum Focal Length 137.60 mm Minimum Aperture f/4
Memory Card Supported Yes
Remote Management Yes
Color White Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof Form Factor Dome Height 9.5"
Input Voltage 240V AC Maximum Power Consumption 51W Power over Ethernet (PoE) Yes
Diameter 6.5" Mount Type Wall Mount
Recording Formats Full HD Storage Type Memory Card
Limited Warranty 5-Year
Certifications EAC, EN 50121-4, EN 55024, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK08, ISO 4892-2, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Environmentally Friendly Yes Features Alarm Detection, Auto Tracking, Built-in IR LED, Cross Line Detection, Day/Night, Electronic Image Stabilization, HTTPS Encryption, Human Detection, Password Protection, Privacy Masking, PTZ, SD Card Local Storage Impact Protection Rating IK08 Indoor/Outdoor Outdoor Ingress Protection Rating IP66 Package Contents Q6135-LE PTZ Network Camera IP66-rated RJ45 connector kit AXIS High PoE 60 W SFP Midspan Installation guide Windows Decoder 1-User licence TAA Compliant Yes
